Hyundai Elantra: Schematic Diagrams - Tire Pressure Monitoring System - Suspension System - Hyundai Elantra HD 2006–2010 Service ManualHyundai Elantra: Schematic Diagrams

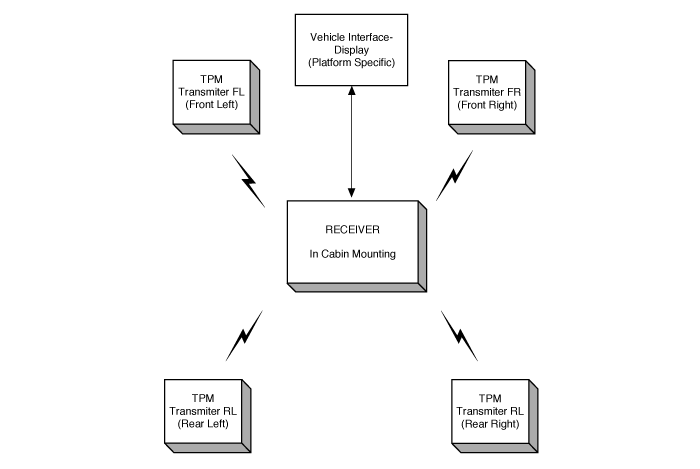

Schematic Diagram

1
 2
 3
 4
 5
 6
 7
 8
9
 10
 11
 12
 13
 14
 15
 16

No
 Pin-out assignment
 No
 Pin-out assignment
1
 Battery
 9
 GROUND
2
 IGN
 10
 SPEED SIG
3
 -
 11
 TREAD
4
 K-LINE
 12
 TPMS Warning
5
 -
 13
 -
6
 -
 14
 -
7
 -
 15
 -
8
 -
 16
 -

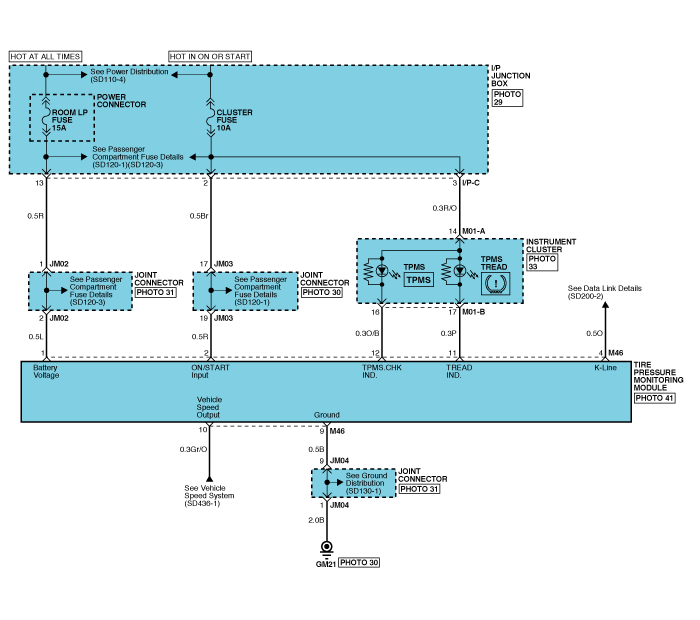

Circuit Diagram
