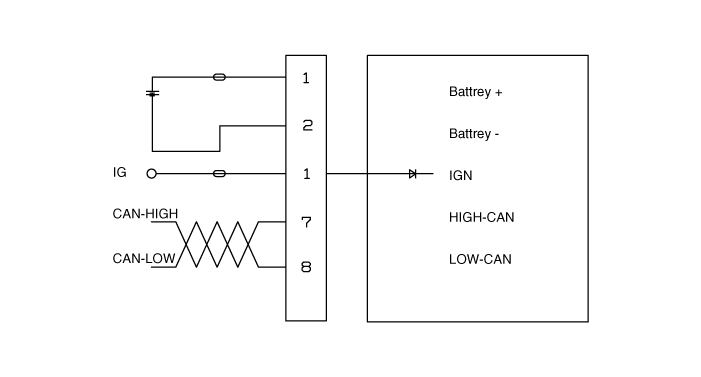

MDPS Circuit Diagram

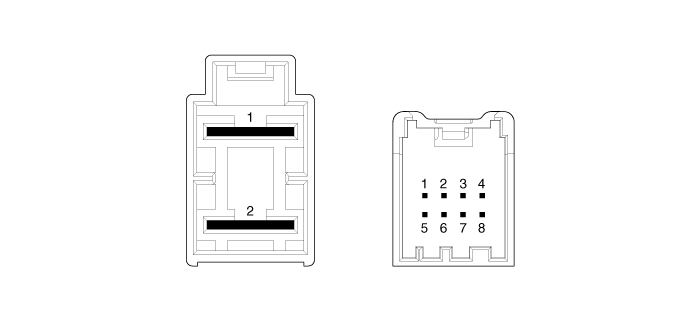

Harness Connector

Type
Pin No
Description
Battery
1
Battery +
2
Battery -
VSS
1
IGN
2
-
3
-
4
-
5
-
6
-
7
HIGH CAN
8
LOW CAN
