Hyundai Elantra: Schematic Diagrams - Cruise Control System - Engine Electrical System - Hyundai Elantra MD 2010-2018 Service manualHyundai Elantra: Schematic Diagrams

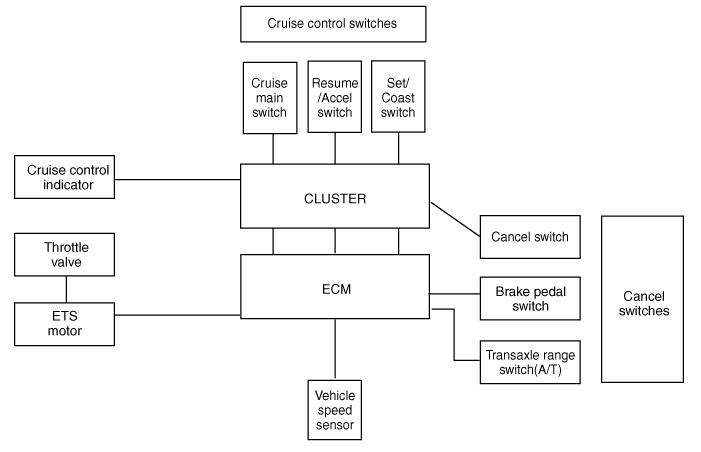

System Block Diagram

Component Parts And Function Outline
Component part
Function
Vehicle-speed sensor
Converts vehicle speed to pulse.
ECM
Receives signals from sensor and control switches.
Cruise control indicator
Illuminate when CRUISE main switch is ON (Built into cluster)
Cruise Control switches
ON/OFF switch
Switch for automatic speed control power supply.
Resume/Accel switch
Controls automatic speed control functions by Resume/Accel switch (Set/Coast switch)
Set/Coast switch
Cancel switches
Cancel switch
Sends cancel signals to ECM.
Brake-pedal switch
Transaxle range switch (A/T)
ETS motor
Regulates the throttle valve to the set opening by ECM.

* ETS : Electronic Throttle System
