Hyundai Elantra: Repair procedures - Fuel Delivery System - Engine Control/Fuel System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Repair procedures

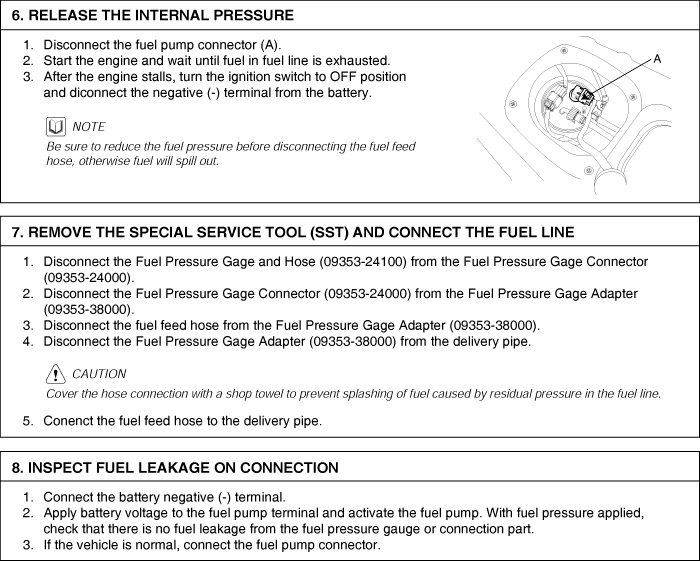

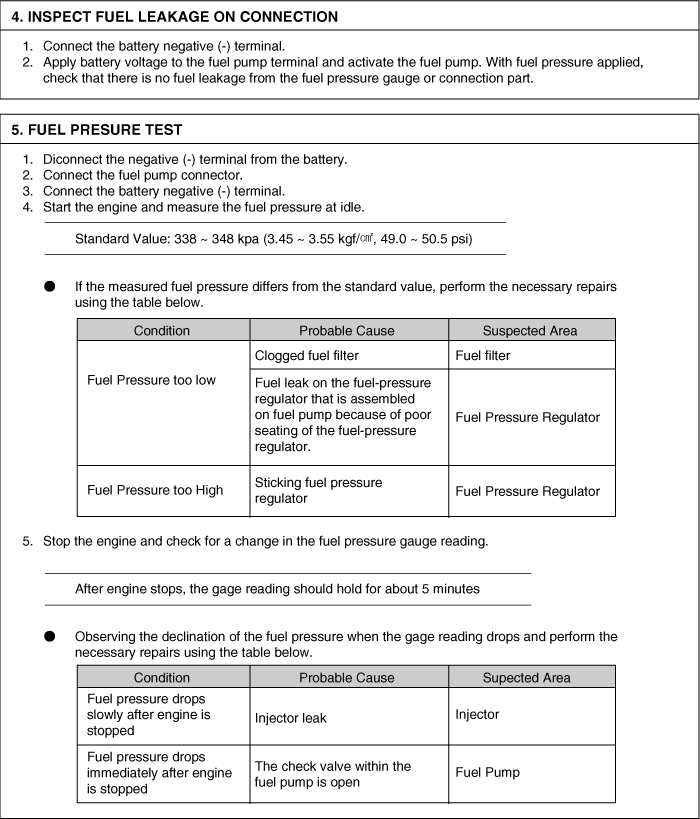

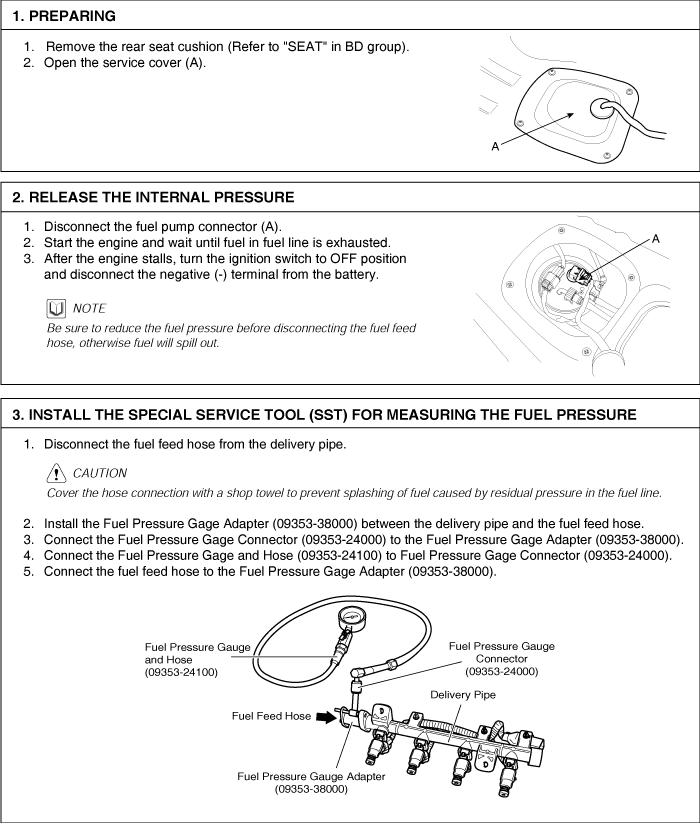

Fuel Pressure Test


    Components and Components Location
    Component Location 1. Fuel Tank 2. Fuel Pump 3. Fuel Filter (Included Fuel Pump) 4. Fuel Pressure Regulator 5. Fuel Pump Plate Cover 6. Fuel Filler Hose 7. Leveli ...

    Fuel Tank. Repair procedures
    Removal (Including Fuel Filter And Fuel Pressure Regulator) 1. Preparation (1) Remove the rear seat cushion (Refer to "SEAT" in ...
