Hyundai Elantra: Recommended cold tire inflation pressures - Tires and wheels - Maintenance - Hyundai Elantra HD 20062010 Owners ManualHyundai Elantra: Recommended cold tire inflation pressures


All tire pressures (including the spare) should be checked when the tires are cold. Cold Tires means the vehicle has not been driven for at least three hours or driven less than one mile (1.6 km).

Recommended pressures must be maintained for the best ride, top vehicle handling, and minimum tire wear.

WARNING WARNING

  • Underinflated or overinflated tires can cause poor handling, loss of vehicle control, and sudden tire failure leading to accidents, injuries, and even death. Always check tires are properly inflated before driving.
  • Driving on tires with no or insufficient tread is dangerous. Worn-out tires can result in loss of vehicle control, collisions, and injury and even death. Worn-out tires should be replaced as soon as possible and should never be used for driving. Always check tire tread before driving your car.

All specifications (sizes and pressures) can be found on a label attached to

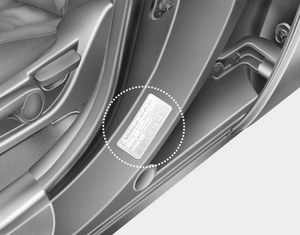

All specifications (sizes and pressures) can be found on a label attached to the drivers side center pillar.

WARNING - Tire underinflation WARNING - Tire underinflation

Severe underinflation (10 psi (70 kPa) or more) can lead to severe heat build-up, causing blowouts, tread separation and other tire failures that can result in the loss of vehicle control leading to severe injury or death. This risk is much higher on hot days and when driving for long periods at high speeds.

CAUTION CAUTION

  • Underinflation also results in excessive wear, poor handling and reduced fuel economy. Wheel deformation also is possible. Keep your tire pressures at the proper levels. If a tire frequently needs refilling, have it checked by an authorized Hyundai dealer.
  • Overinflation produces a harsh ride, excessive wear at the center of the tire tread, and a greater possibility of damage from road hazards.
  • Warm tires normally exceed recommended cold tire pressures by 4 to 6 psi (28 to 41 kPa). Do not release air from warm tires to adjust the pressure or the tires will be underinflated.
  • Be sure to reinstall the tire inflation valve caps. Without the valve cap, dirt or moisture could get into the valve core and cause air leakage. If a valve cap is missing, install a new one as soon as possible.

WARNING - Tire inflation WARNING - Tire inflation

Overinflation or underinflation can reduce tire life, adversely affect vehicle handling, and lead to sudden tire failure. This could result in loss of vehicle control and potential injury.

CAUTION - Tire pressure CAUTION - Tire pressure

Always observe the following:

  • Check tire pressure when the tires are cold. (After vehicle has been parked for at least three hours or hasn't been driven more than one mile (1.6 km) since startup.)
  • Check the pressure of your spare tire each time you check the pressure of other tires.
  • Never overload your vehicle. Be careful not to overload a vehicle luggage rack if your vehicle is equipped with one.
  • Worn, old tires can cause accidents. If your tread is badly worn, or if your tires have been damaged, replace them.
