Hyundai Elantra: Rear Shock Absorber. Components and Components Location - Rear Suspension System - Suspension System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Rear Shock Absorber. Components and Components Location

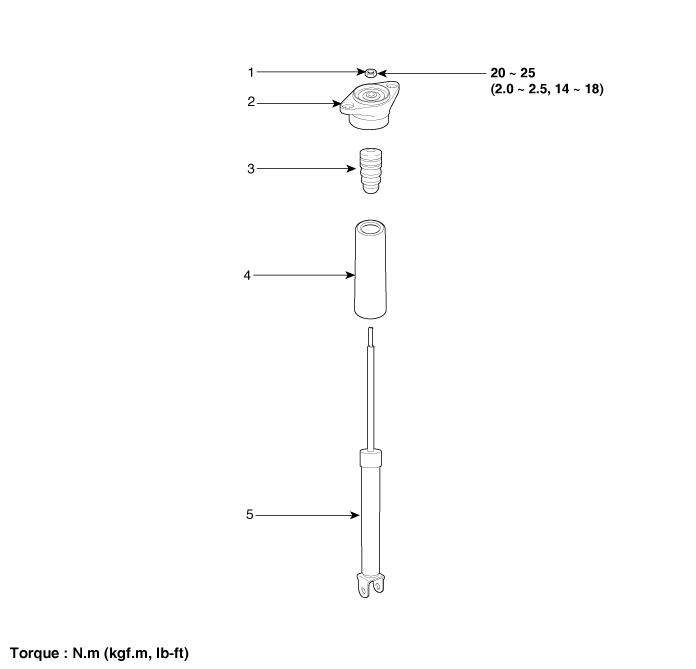

Components

1. Self locking nut
2. Bracket assembly
3. Bumper rubber
4. Dust cover
5. Shock absorber
