Hyundai Elantra: Rear Repair procedures - Bumper - Body (Interior and Exterior) - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Rear Repair procedures

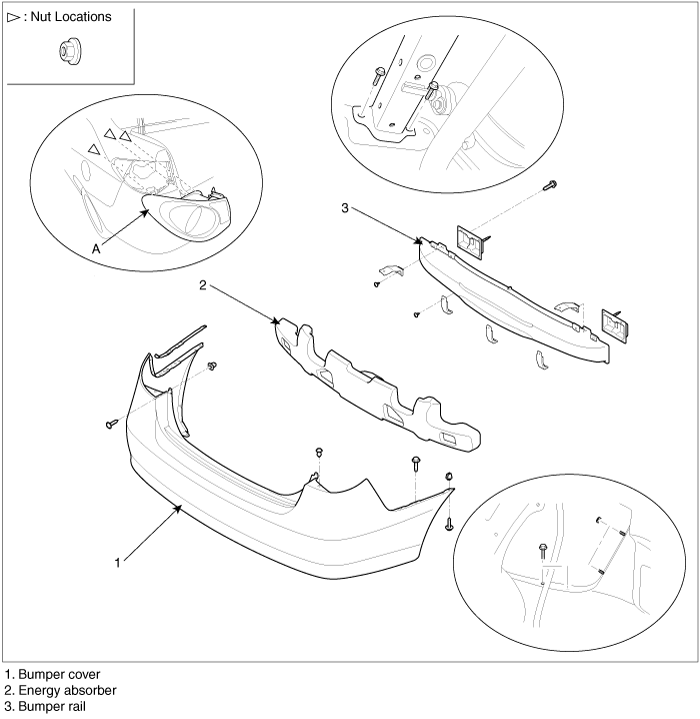

Replacement

-
After remove the rear combinati0n lamp.
-
When prying with a flat-tip screwdriver, wrap it with protective tape , and apply protective tape around the related parts your hands.
-
Put on gloves to protect your hands.
-
Take care not bend or scratch the cover and other parts.
1.
Remove the trunk trim.
2.
Loosen the rear bumper cover screws and clips.
3.
Installation is the reverse of removal.
-
Replace any damage clips.
