Hyundai Elantra: Rear Hub - Carrier. Components and Components Location - Rear Axle Assembly - Driveshaft and axle - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Rear Hub - Carrier. Components and Components Location


Component

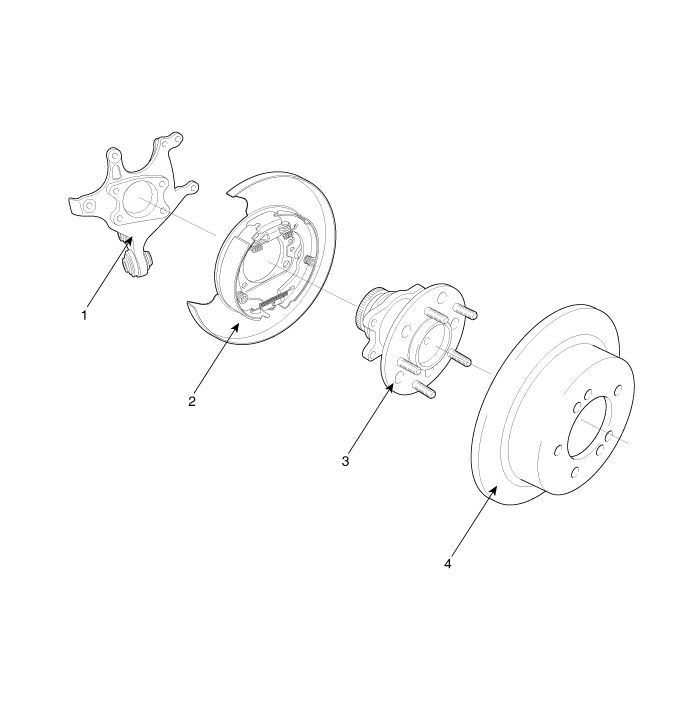

Disc Brake Type

1. Carrier assembly
2. Rear brake assembly
3. Hub & bearing assembly
4. Rear brake disc

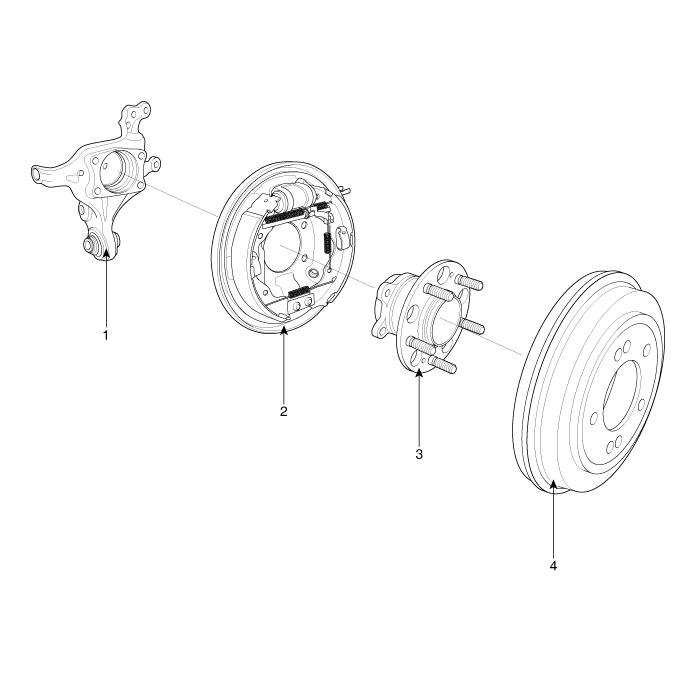

Drum Brake Type

1. Carrier assembly
2. Rear brake assembly
3. Hub & bearing assembly
4. Rear brake drum
