Hyundai Elantra: Rear Drum Brake. Components and Components Location - Brake System - Brake System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Rear Drum Brake. Components and Components Location

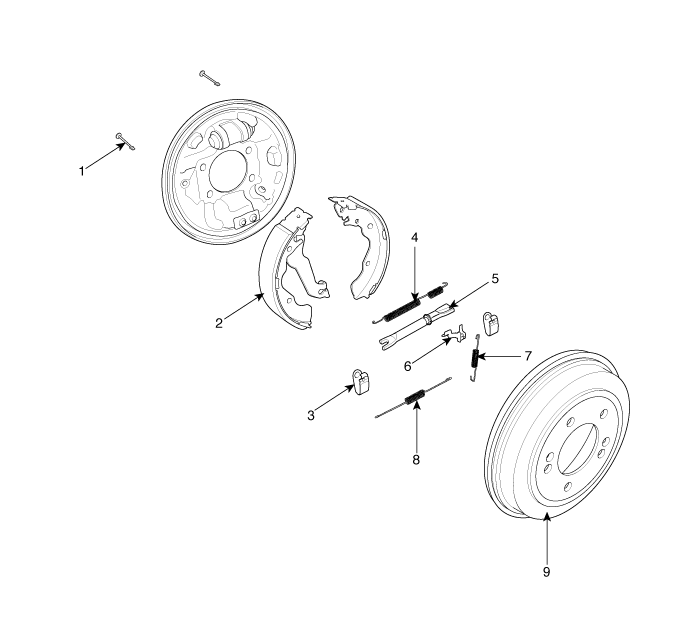

Components

1. Shoe hold down pin
2. Shoe
3. Shoe hold spring
4. Upper return spring
5. Shoe adjuster
6. Adjusting lever
7. Adjusting lever spring
8. Lower return spring
9. Brake drum
