Hyundai Elantra: Rear Disc Brake. Components and Components Location - Brake System - Brake System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Rear Disc Brake. Components and Components Location

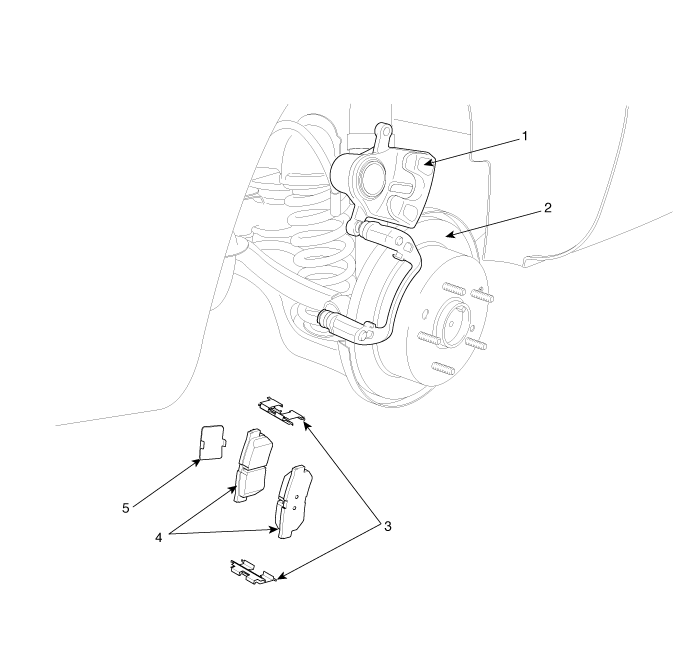

Component Location

1. Brake caliper
2. Brake disc
3. Pad spring
4. Brake pad
5. Brake pad shim

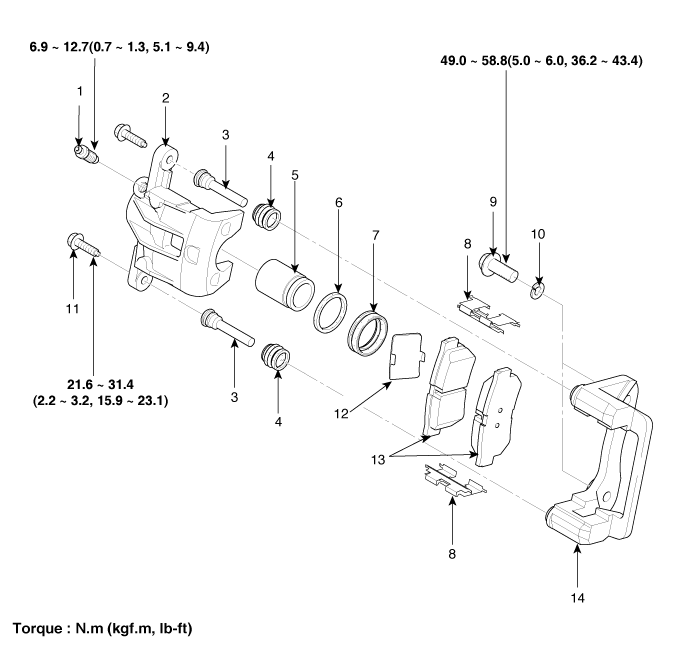

Components

1. Bleeder screw
2. Caliper housing
3. Guide rod
4. Boot
5. Piston
6. Piston seal
7. Piston boot
8. Pad spring
9. Caliper mounting bolt
10. Washer
11. Guide rod bolt
12. Inner shim
13. Brake Pad
14. Caliper carrier
