Hyundai Elantra HD: Rear combination light bulb replacement - Light bulbs - Maintenance - Hyundai Elantra HD 2006–2010 Owners ManualHyundai Elantra HD: Rear combination light bulb replacement

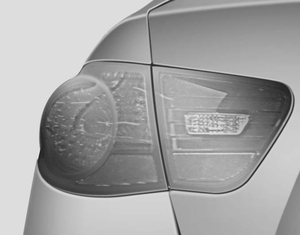

(1) Back-up light

(1) Back-up light
(2) Rear turn signal light
(3) Stop and tail light
(4) Side mark light

1. Open the trunk lid

1. Open the trunk lid

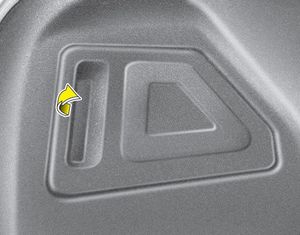

2. Remove the service cover by pulling out the service cover.

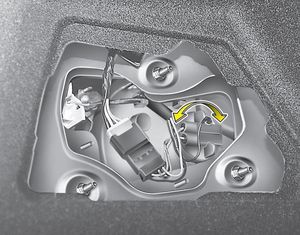

3. Remove the socket from the assembly by turning the socket counterclockwise

3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

4. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

5. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

6. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

7. Install the service cover by putting it into the service hole.
