Hyundai Elantra: Programming - Mirrors - Features of your vehicle - Hyundai Elantra HD 20062010 Owners ManualHyundai Elantra: Programming


Your vehicle may require the ignition switch to be turned to the ACC position for programming and/or operation of HomeLink. It is also recommended that a new battery be replaced in the hand-held transmitter of the device being programmed to HomeLink for quicker training and accurate transmission of the radio-frequency.

Follow these steps to train your HomeLink mirror:

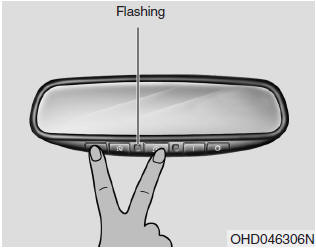

1. When programming the buttons for the first time, press and hold the left and

1. When programming the buttons for the first time, press and hold the left and center buttons () simultaneously until the indicator, light begins to flash after approximately 20 seconds. (This procedure erases the) simultaneously until the indicator light begins to flash after approximately 20 seconds. (This procedure erases the factory-set default codes. Do not perform this step to program additional hand-held transmitters.)

✽ NOTICE

For non rolling code garage door openers, follow steps 2 - 3.

For rolling code garage door openers, follow steps 2 - 6.

For Canadian Programming, please follow the Canadian Programming section. For help with determining whether your garage is non-rolling code or rolling code, please refer to the garage door openers owners manual or contact HomeLink customer service at 1-800- 355-3515.

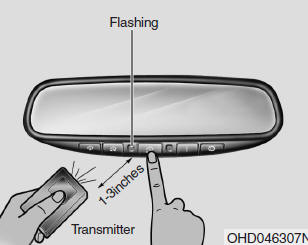

2. Press and hold the button on the HomeLink system you wish to train and the

2. Press and hold the button on the HomeLink system you wish to train and the button on the transmitter while the transmitter is approximately 1 to 3 inches away from the mirror. Do not release the buttons until step 3 has been completed.

3. The HomeLink indicator light will flash, first slowly and then rapidly. When the indicator light flashes rapidly, both buttons may be released. (The rapid flashing light indicates successful programming of the new frequency signal.)

✽ NOTICE

Some gate operators and garage door openers may require you to replace step #3 with the cycling procedure noted in the Canadian Programming section of this document.
