Components

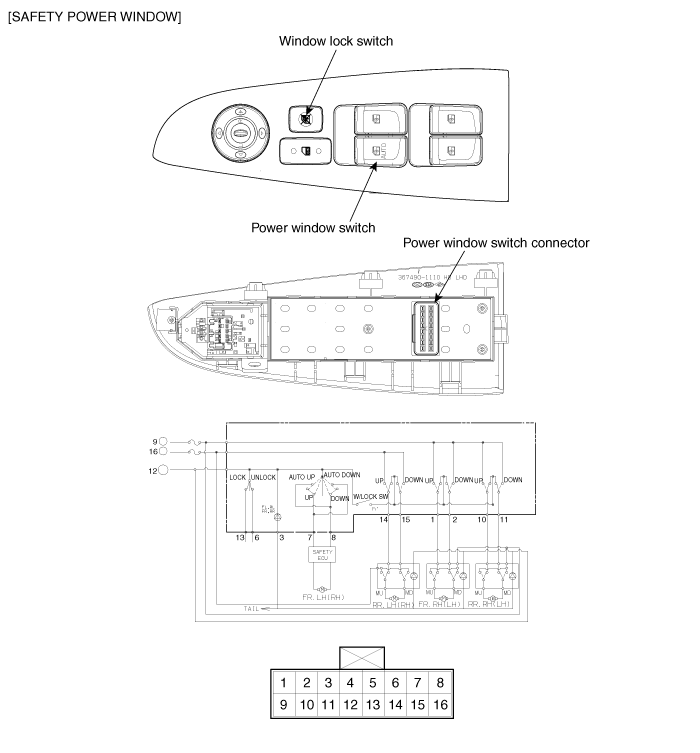

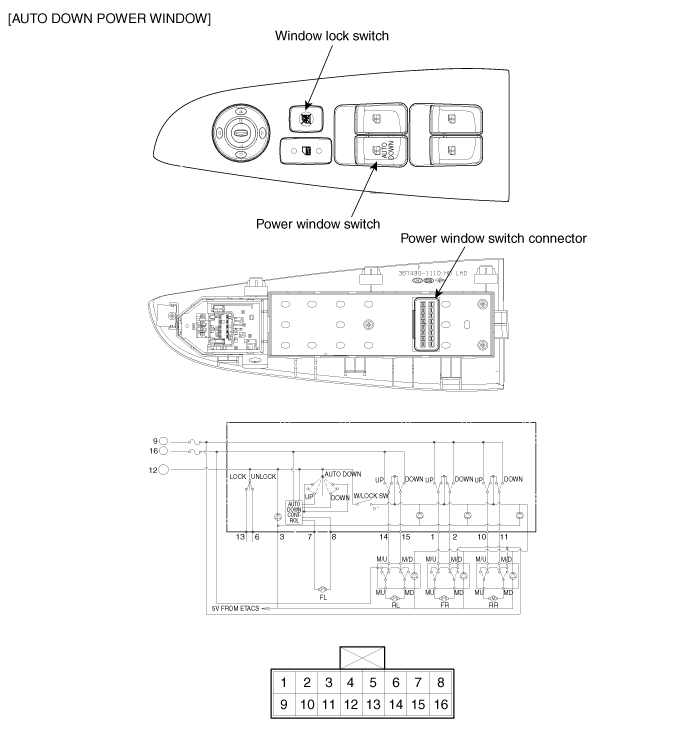

Power Window Main Switch

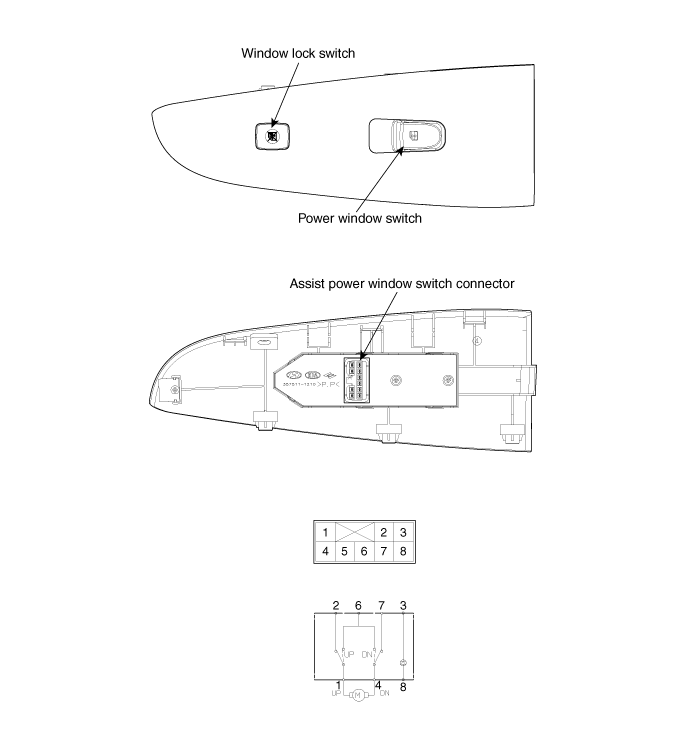

Assist Power Window Switch

Assist Power Window Switch

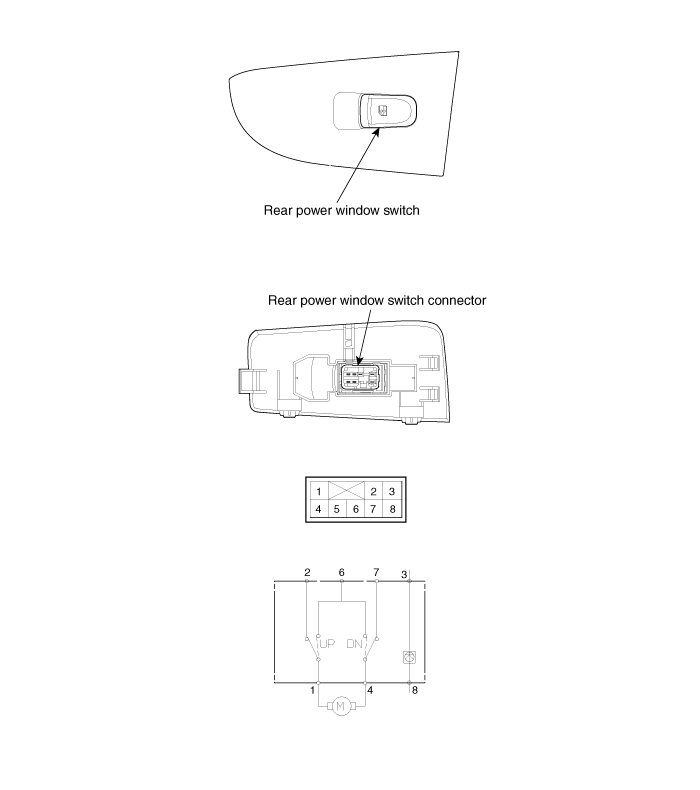

Rear Power Window Switch

Rear Power Window Switch
