Hyundai Elantra MD/UD: Power Window Relay. Repair procedures - Power Windows - Body Electrical System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Power Window Relay. Repair procedures

Inspection

Diagnosis With GDS
1.
It will be able to diagnose defects of power window with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
2.
Select model and "BCM".
3.
Select the "SJB" to check.
4.

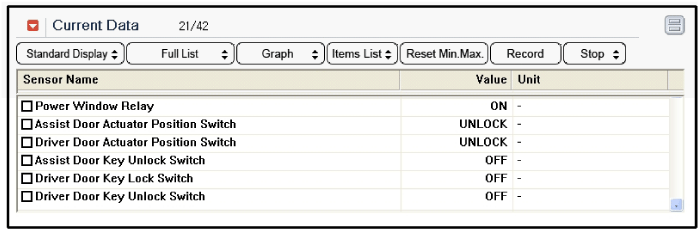

Select "Current data", if you will check current data of power window system. It provides input/output status of SJB.

5.

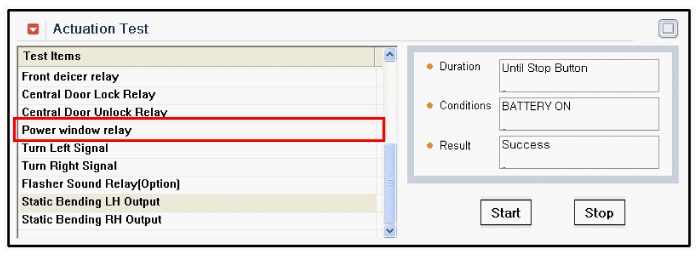

If you will check the power door lock operation forcefully, select "Actuation test".
