Hyundai Elantra MD/UD: Power Seat Control Switch. Schematic
Diagrams - Seat Electrical - Body Electrical System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Power Seat Control Switch. Schematic Diagrams

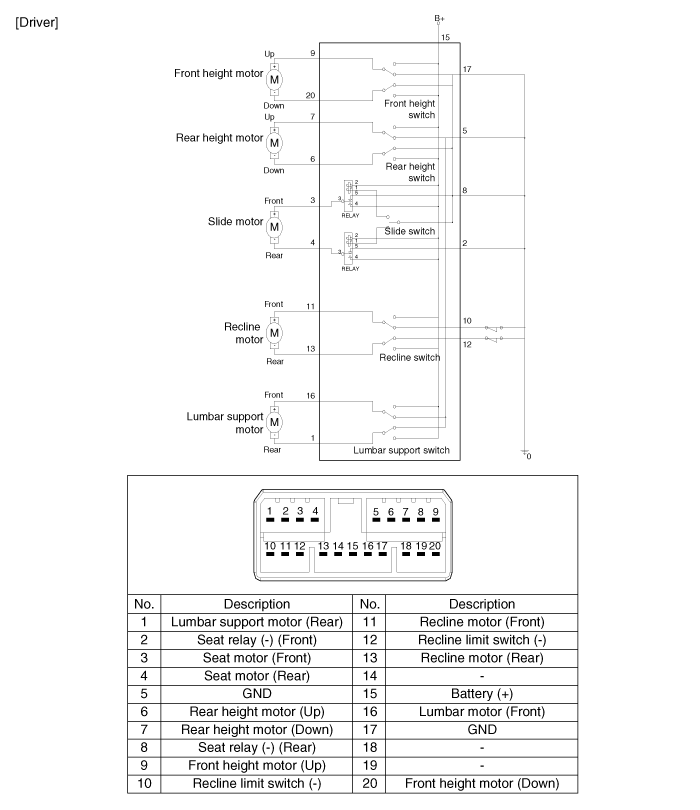

Circuit Diagram


Power Seat Motor. Repair procedures
Inspection Power seat motor 1. Remove the seat and all motor connectors. A : Slide motor B : Tilt motor C : Height motor D : Reclin ...
