Hyundai Elantra MD/UD: Overdrive Clutch Control Solenoid Valve(OD/C_VFS). Schematic Diagrams - Automatic Transaxle Control System - Automatic Transaxle System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Overdrive Clutch Control Solenoid Valve(OD/C_VFS). Schematic Diagrams

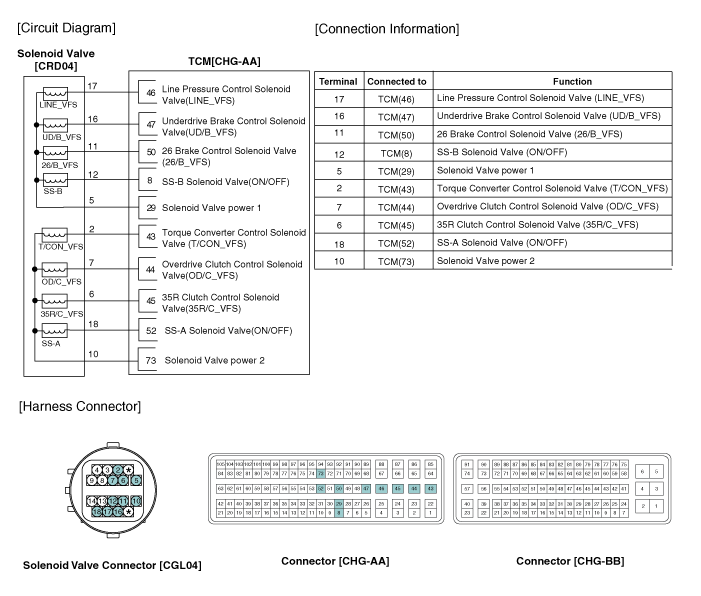

Circuit Diagram


Overdrive Clutch Control Solenoid Valve(OD/C_VFS). Specifications
Specifications Direct control VFS[OD/C] ▷ Control type : Normal low type Control Pressure kpa (kgf/cm², psi) 500.14 ~ 9.81 (5.1 ~ 0.1,72.54 ~ 1.42) ...
