Hyundai Elantra: Muffler. Components and Components Location - Intake And Exhaust System - Engine Mechanical System - Hyundai Elantra MD 2010-2018 Service manualHyundai Elantra: Muffler. Components and Components Location

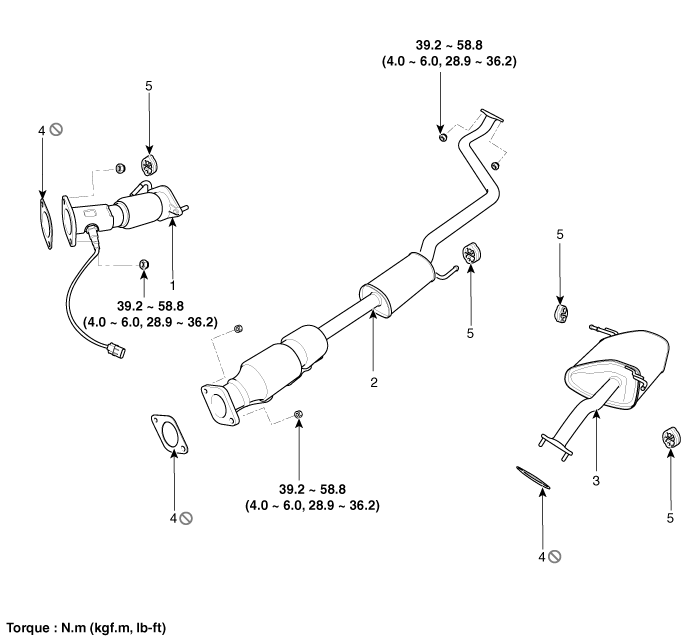

Components

1. Front muffler
2. Catalytic converter & center muffler assembly
3. Main muffler
4. Gasket
5. Hanger
