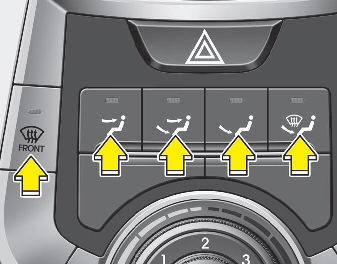

The mode selection button controls the direction of the air flow through the

The mode selection button controls the direction of the air flow through the ventilation system.

Air flow is directed toward the upper body and face. Additionally, each outletFace-Level (B, D)

Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.

Air flow is directed towards the face and the floor.Bi-Level (B, D, E, C)

Air flow is directed towards the face and the floor.

E)Floor-Level (C, A, D, E)

Most of the air flow is directed to the floor, with a small amount of the air being directed to the windshield, side window defrosters, and side vents.

C, D, E)Floor/Defrost-Level (A, C, D, E)

Most of the air flow is directed to the floor and the windshield with a small amount directed to the side window defrosters, and side vents.

Most of the air flow is directed to the windshield with a small amount of airDefrost-Level (A, D)

Most of the air flow is directed to the windshield with a small amount of air directed to the side vents.
