Hyundai Elantra: Master Cylinder. Components and Components Location - Brake System - Brake System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Master Cylinder. Components and Components Location

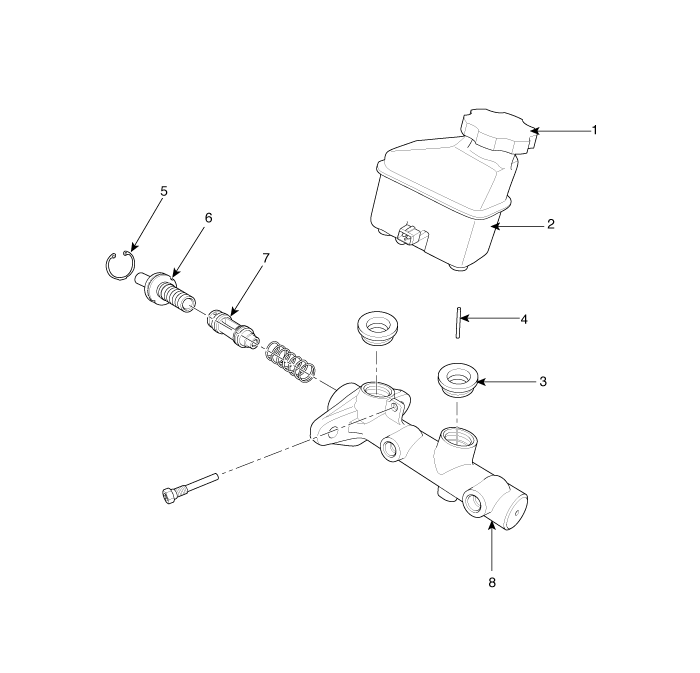

Components

1. Reservoir cap
2. Reservoir
3. Grommet
4. Cylinder pin
5. Retainer
6. Primary piston assembly
7. Secondary piston assembly
8. Master cylinder body
