Hyundai Elantra: Manual Transaxle. Components and Components Location (M5CF2) - Manual Transaxle System - Manual Transaxle System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Manual Transaxle. Components and Components Location (M5CF2)

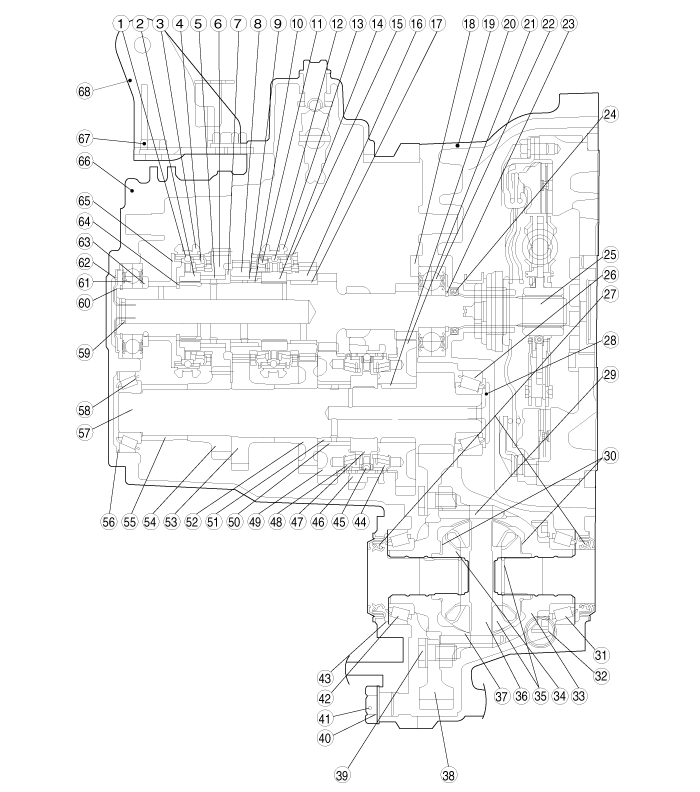

Components (1)

1. 5th synchronizer key assembly
2. 5th synchronizer hub
3. 5th synchronizer sleeve
4. 5th double cone assembly
5. Needle roller bearing
6. 5th speed gear
7. 5th speed gear sleeve
8. 4th speed gear
9. Needle roller bearing
10. 4th speed gear sleeve
11. 4th double cone assembly
12. 4th synchronizer key assembly
13. 3rd & 4th synchronizer sleeve
14. 3rd & 4th synchronizer hub
15. 3rd double cone assembly
16. 3rd speed gear
17. Needle roller bearing
18. Input shaft bearing retainer
19. Clutch housing
20. Needle roller bearing
21. 1st speed gear
22. Input shaft front ball bearing
23. Input shaft front snap ring
24. Input shaft front oil seal
25. Input shaft
26. Output shaft front taper roller bearing
27. Differential oil seal
28. Output shaft oil guide
29. Lock pin
30. Differential gear spacer
31. Differential taper roller bearing
32. Speedometer drive gear
33. Differential case
34. Differential side gear
35. Differential pinion gear
36. Pinion shaft
37. Washer
38. Differential drive gear
39. Differential gear seal bolt
40. Gasket
41. Drain plug
42. Differential taper roller bearing
43. Spacer
44. 1st tripple cone assembly
45. 1st synchronizer key
46. 1st & 2nd synchronizer sleeve
47. 1st & 2nd synchronizer hub
48. 2nd tripple cone assembly
49. 2nd speed gear
50. Needle roller bearing
51. 2nd speed gear sleeve
52. 3rd speed output gear
53. 4th speed output gear
54. 5th speed output gear
55. Spacer
56. Output bearing spacer
57. Output shaft
58. Output shaft rear taper roller bearing
59. Oil guide ring
60. Input shaft rear snap ring
61. Input shaft rear ball bearing
62. Input shaft oil guide
63. Thrust washer
64. Input shaft 5th snap ring
65. Spacer
66. Transaxle case
67. Transaxle support bracket bolt
68. Transaxle support bracket

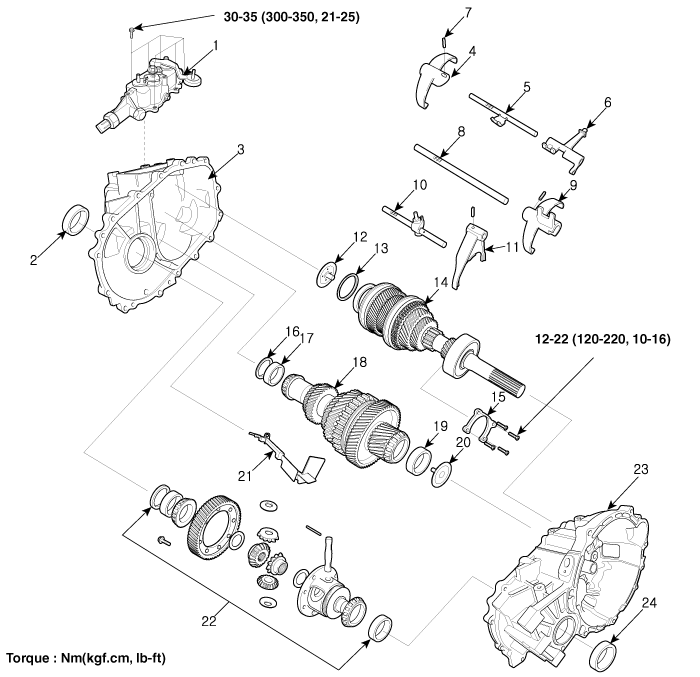

Components (2)

1. Control shaft complete
2. Oil seal
3. Transaxle case
4. 5th shift fork
5. 5th shift rail
6. Reverse shift lug
7. Spring pin
8. 3rd & 4th shift rail
9. 3rd & 4th shift lug and fork
10. 1st & 2nd shift rail
11. 1st & 2nd shift fork
12. Input shaft oil guide
13. Snap ring
14. Input shaft assembly
15. Input shaft bearing retainer
16. Spacer
17. Output shaft rear outer racer
18. Output shaft assembly
19. Output shaft front outer racer
20. Output shaft oil guide
21. Oil guide
22. Differential assembly
23. Oil seal
24. Clutch housing
