Hyundai Elantra: Manual Transaxle. Components
and Components Location - Manual Transaxle System - Manual Transaxle System - Hyundai Elantra MD 2010-2018 Service manualHyundai Elantra: Manual Transaxle. Components and Components Location

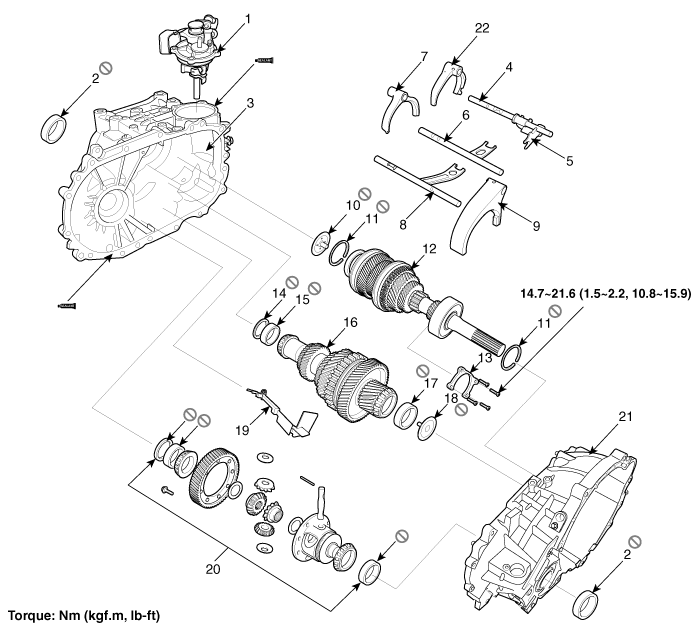

Components

1. Control shaft complete
2. Oil seal
3. Transaxle case
4. 5&6th shift rail
5. Reverse shift rug
6. 3&4th shift rail
7. 3&4th shift fork
8. 1&2nd shift rail
9. 1&2nd shift fork
10. Input shaft oil guide
11. Snap ring
12. Input shaft assembly
13. Input shaft bearing retainer
14. Spacer
15. Output shaft rear outer race
16. Output shaft assembly
17. Output shaft front outer race
18. Output shaft oil guide
19. Oil guide
20. Differential assembly
21. Clutch housing
22. 5&6th shift fork


    Repair procedures
    Inspection Manual Transaxle Oil Inspection 1. Park the vehicle on a level ground and stop the engine. 2. Loosen the oil fill ...
