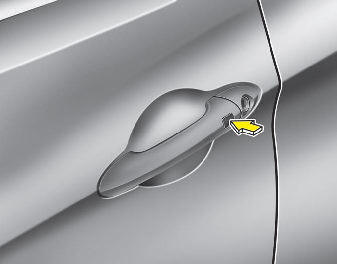

Using the door handle button

Using the door handle button

1.Close all doors, engine hood and trunk.

2.Press the button of the outside door handle.

3.The hazard warning lights will blink and the chime will sound once.

4.Make sure that doors are locked by checking the door lock button inside the vehicle or pulling the outside door handle.

✽ NOTICE

  • The button will only operate when the smart key is within 28~40in. (0.7~1m) from the outside door handle.
  • Even though you press the outside door handle button, the doors will not lock and the chime will sound for 3 seconds if any of following occur:
    • The smart key is in the vehicle.
    • The engine start/stop button is in ACC or ON position.
    • Any door except the trunk is open.

- Smart keyWARNING - Smart key

Leaving children unattended in a vehicle with the smart key is dangerous. Children copy adults and they could press the engine start/stop button. It would enable children to operate power windows or other controls, or even make the vehicle move, which could result in serious bodily injury or even death. Never leave the keys in your vehicle with unsupervised children.

Using the button on the smart key

1 Close all doors, engine hood and trunk.

2.Press the lock button(1).

3.The hazard warning lights will blink and the chime will sound once.

4.Make sure that doors are locked by checking the door lock button inside or pulling the outside door handle.
