Hyundai Elantra MD/UD: Interior light bulb replacement - Light bulbs - Maintenance - Hyundai Elantra MD 2010-2015 Owners manualHyundai Elantra MD/UD: Interior light bulb replacement

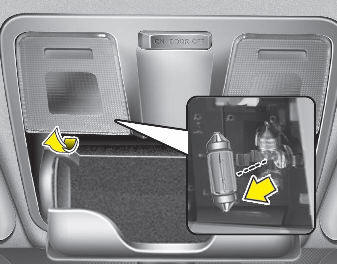

Map lamp

Map lamp

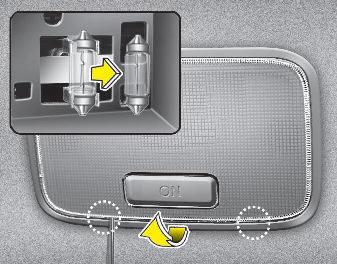

Room lamp

Room lamp

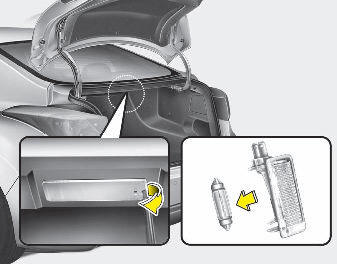

Luggage lamp (if equipped)

Luggage lamp (if equipped)

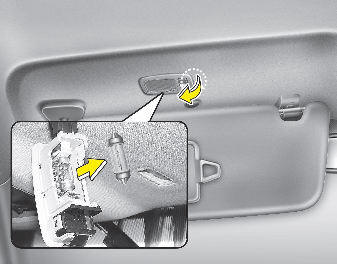

Sunvisor lamp

Sunvisor lamp

1. Using a flat-blade screwdriver, gently pry the lens from the interior light housing.

2. Remove the bulb by pulling it straight out.

Prior to working on the Interior Lights, ensure that the “OFF” button is depressedWARNING

Prior to working on the Interior Lights, ensure that the “OFF” button is depressed to avoid burning your fingers or receiving an electric shock.

3. Install a new bulb in the socket.

4. Align the lens tabs with the interior light housing notches and snap the lens into place.

Use care not to dirty or damage lens, lens tab, and plastic housings. CAUTION

Use care not to dirty or damage lens, lens tab, and plastic housings.

License plate light bulb replacement
1. Remove the cover by pressing it as direction of the arrows. 2. Remove the bulb by pulling it straight out. 3. Install a new bulb. 4. Reinstall in the reverse order. ...
