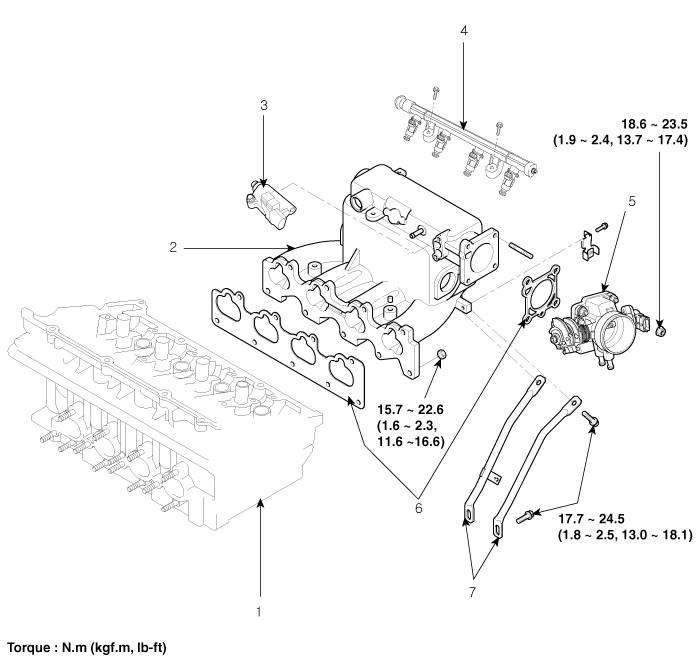

Components

1. Cylinder head
2. Intake manifold
3. Idle speed actuator(ISA)
4. Delivery pipe assembly
5. Throttle body assembly
6. Gasket
7. Intake manifold stay


    Intake Manifold. Repair procedures
    Removal 1. Removal the engine cover(A). 2. Disconnect the throttle position sensor(TPS) and the idle speed actuator(ISA) connector ...
