Hyundai Elantra: Installation - Automatic Transaxle. Repair procedures - Automatic Transaxle System - Automatic Transaxle System - Hyundai Elantra MD 2010-2018 Service manualHyundai Elantra: Installation


1.
Installation is the reverse of removal.
If the oil seal on the transaxle case side is damaged and fluid is leaking, replace the oil seal with a new unit. When installing the new oil seal, use the specialized tool (oil seal installer, 09452-26100).
After replacement or reinstallation procedure of the automatic transaxle assembly, must perform procedures below.
Х
Adding automatic transaxle fluid.
(Refer to Hydraulic System - "Fluid")
Х
After replacing the automatic transaxle, clear the Diagnostic Trouble Code(DTC) using the GDS tool. DTC cannot be cleared by disconnecting the battery.
Х

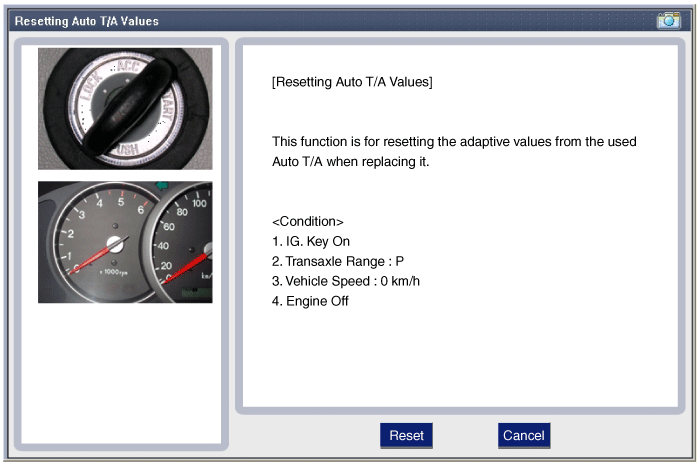

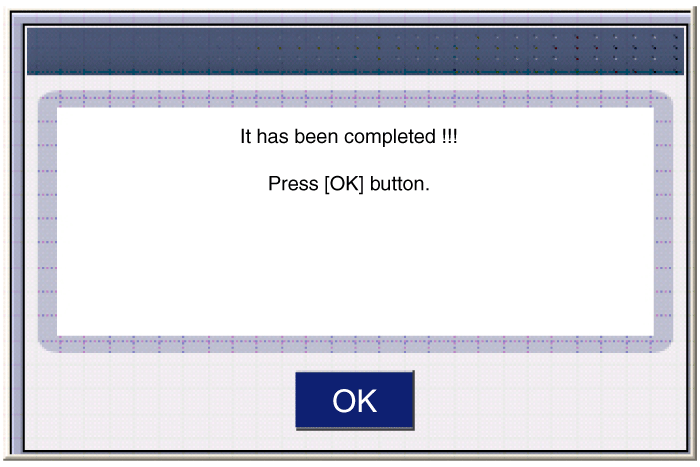

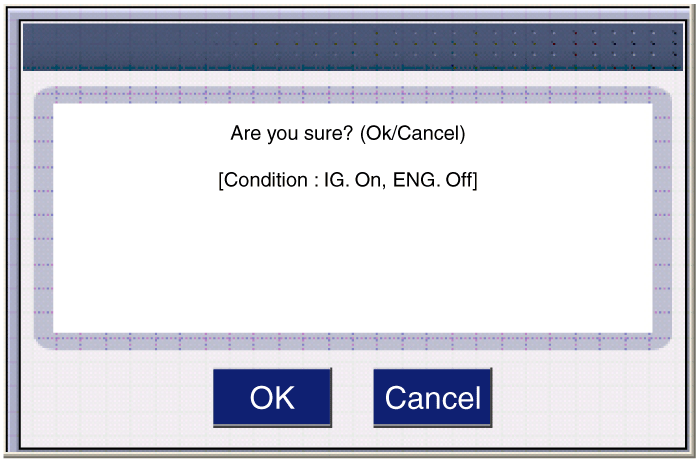

When replacing the automatic transaxle, reset the automatic transaxle's values by using the GDS.

Х
Perform TCM learning after replacing the transaxle to prevent slow transaxle response, jerky acceleration and jerky startup.
(Refer to Automatic Transaxle Control System - "Repair procedures")
