Hyundai Elantra MD/UD: Inspection - Hazard Lamp Switch. Repair procedures - Lighting System - Body Electrical System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Inspection

1.
It will be able to diagnose defects of hazard switch with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
2.
Select model and "BCM".
3.
Select the "SJB" to check.
4.

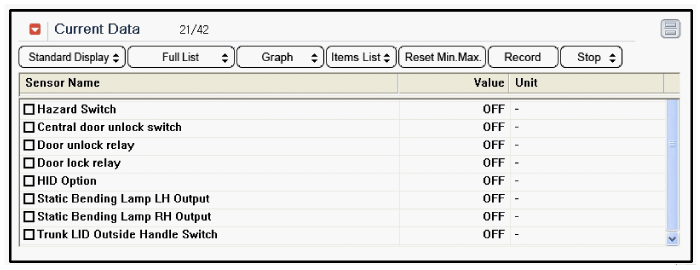

Select "Current data", if you will check current data of hazard switch. It provides input/output status of SJB.


Removal
1. Disconnect the negative(-) battery terminal. 2. Remove the heater control module. (Refer to the HA group - "Controller") ...
