Hyundai Elantra: Inspection - Back-up Lamp Switch. Repair procedures - Manual Transaxle Control System - Manual Transaxle System - Hyundai Elantra MD 2010-2018 Service manualHyundai Elantra: Inspection


1.
Disconnect the back up lamp switch connector(A).

2.

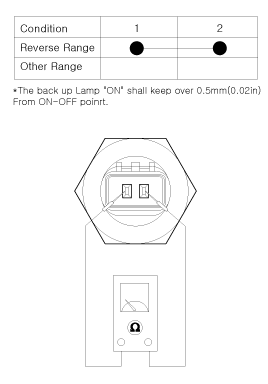

Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.
3.
If necessary, repair or replace the backup lamp switch.
