Hyundai Elantra MD/UD: Input Speed Sensor. Schematic Diagrams

Fifth generation (MD/UD; 2011–2016) / Hyundai Elantra MD 2010-2015 Service manual / Automatic Transaxle System / Automatic Transaxle Control System / Input Speed Sensor. Schematic Diagrams

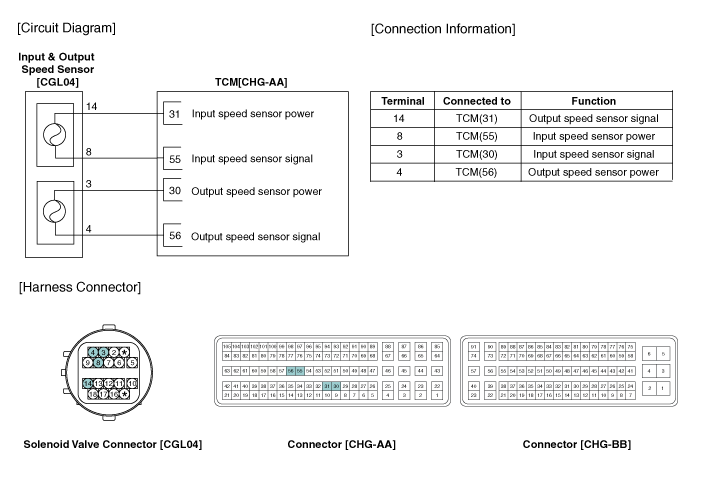

Circuit Diagram

Input Speed Sensor. Specifications

Specifications ▷ Type: Hall effect sensor Operation condition [°C(°F)] ((-)40 ~ 150)) -40 ~ 302 Air gap(mm)in. (1.2 ~ 1.8) 0.0472 ...

Input Speed Sensor. Troubleshooting

Signal Waveform Fig 1) Input/Output speed sensor at low speed Fig 2) Input/Output speed sensor at high speed ...
