Hyundai Elantra: Inner panel fuse replacement - Fuses - Maintenance - Hyundai Elantra HD 20062010 Owners ManualHyundai Elantra: Inner panel fuse replacement

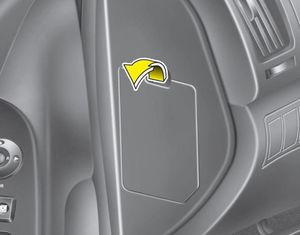

Drivers side panel

Drivers side panel

1. Turn the ignition switch and all other switches off.

2. Open the fuse panel cover.

3. Pull the suspected fuse straight out. Use the removal tool provided on the

3. Pull the suspected fuse straight out. Use the removal tool provided on the main fuse box in the engine compartment.

4. Check the removed fuse; replace it if it is blown.

5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized Hyundai dealer.

If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigar lighter fuse.

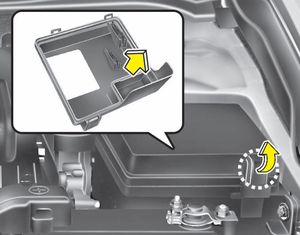

If the headlights or other electrical components do not work and the fuses are OK, check the fuse block in the engine compartment. If a fuse is blown, it must be replaced.

    Fuses
    Blade type Cartridge type Fusible link A vehicles electrical system is protected from electrical overload damage by fuses. This vehicle has 2 fuse panels, one located in the drivers side ...

    Memory fuse
    Your vehicle is equipped with the memory fuse to prevent battery discharge if your vehicle is parked without being operated for prolonged periods. Use the following procedures before parking the ...
