Hyundai Elantra: Heating and air conditioning - Manual climate control system - Features of your vehicle - Hyundai Elantra HD 2006Ц2010 Owners ManualHyundai Elantra: Heating and air conditioning


1. Start the engine.
2. Set the mode to the desired position.
3. Set the temperature control to the desired position.
4. Set the air intake control to the outside (fresh) air position.
5. Set the fan speed control to the desired speed.
6. If air conditioning is desired, turn the air conditioning system (if equipped) on.

Mode selection

    Manual climate control system
    1. Temperature control knob 2. Fan speed control knob 3. Mode selection knob 4. Air conditioning button (if equipped) 5. Air intake control button 6. Rear window defroster button ...

    Mode selection

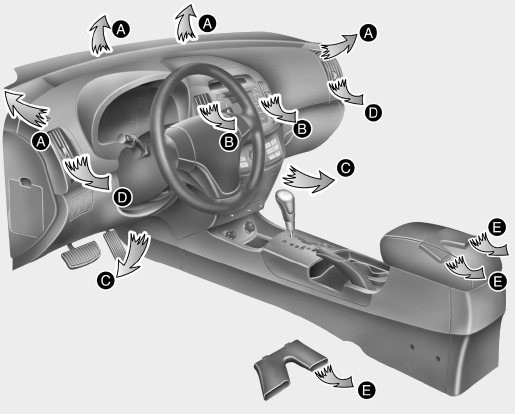

    The mode selection knob controls the direction of the air flow through the ventilation system. Air can be directed to the floor, dashboard outlets, or windshield. Five symbols are used to repre ...
