Replacement

Front Seat Belt Replacement
-
When installing the belt, make sure not to damage the pretensioner.
1.
Remove the following items fist.
A.
Front seat assembly.
B.
Door scuff trim.
2.

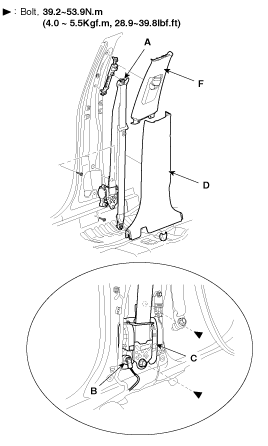

After raise the lower anchor cover (A), loosen the lower anchor mounting bolt (B).

3.
Remove the center pillar lower trim(D).
4.
Remove the center pillar upper trim(F).
5.
Remove the upper anchor (A).
6.
After disconnecting the pretensioner connector lock pin, remove the connector (B), Loosen the mounting bolt, then remove the pretensioner (C).

7.
Installation is the reverse of removal.
Rear Seat Belt Relacement
-
When installing the belt, make sure not to damage the pretensioner.
1.
Remove the following items first.
A.
Rear seat assembly.
B.
Rear door scuff trim.
C.
Rear filler trim.
D.
Package tray trim.
2.
Remove the lower anchor (A).
3.
Remove the package tray trim.
4.
After loosening the retractor (C) mounting bolt, remove the rear seat belt (B).

5.
Installation is the reverse of removal.
Front Seat Belt Buckle Replacement
1.
Remove the following items first.
A.
Front seat assembly.
2.
Remove the wire harness of buckle from seat.
3.
Remove the seat belt buckle (A).

4.
Installation is the reverse of removal.
Rear Seat Belt Buckle Replacement
1.
After cushion frame hinge mounting bolt, fold the cushion.
2.
Remove the seat belt buckle (A).

3.
Installation is the reverse of removal.
Hight Adjuster Replacement
1.
Remove the following items first.
A.
Front seat assembly.
B.
Door scuff trim.
C.
Front seat belt.
D.
Center pillar trim.
2.
After loosening the mounting bolt, then remove the height adjuster (A).

3.
Installation is the reverse of removal.
