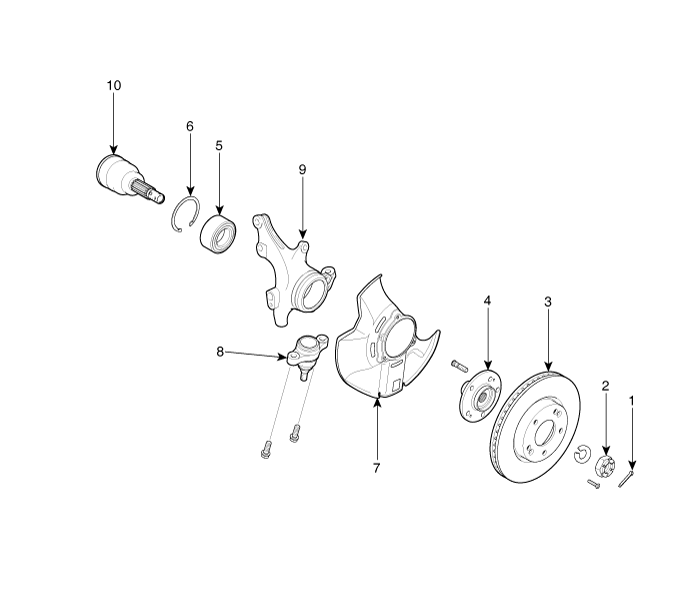

Components

1. Split pin
2. Driveshaft nut (castle nut)
3. Brake disc
4. Hub
5. Wheel bearing
6. Snap ring
7. Dust cover
8. Lower arm ball joint
9. Knuckle
10. Driveshaft
