Hyundai Elantra: Front Fog Lamps. Repair procedures - Lighting System - Body Electrical System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Front Fog Lamps. Repair procedures


Removal

1.
Disconnect the negative (-) battery terminal.
2.
Remove the front side cover screw.
3.
Remove the front fog lamp assembly connector (A).

4.
Remove the front fog lamp bulb (A).


Installation

1.
Install the front fog lamp bulb.
2.
Connect the front fog lamp connector.
3.
Install the front side cover.

Inspection

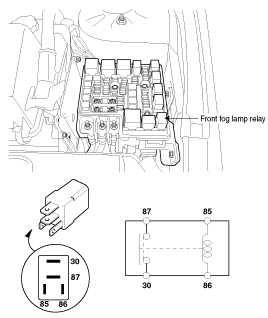

Front Fog Lamp Relay
1.
Pull out the front fog lamp (A) relay from the engine compartment relay box.
2.
Check for continuity between terminals. There should be continuity between the No.87 and No.30 terminals when power and ground are connected to the No.85 and No.86 terminals.
3.
There should be no continuity between the No.87 and No.30 terminals when power is disconnected.
