Hyundai Elantra: Front Driveshaft. Components and Components Location - Driveshaft Assembly - Driveshaft and axle - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Front Driveshaft. Components and Components Location

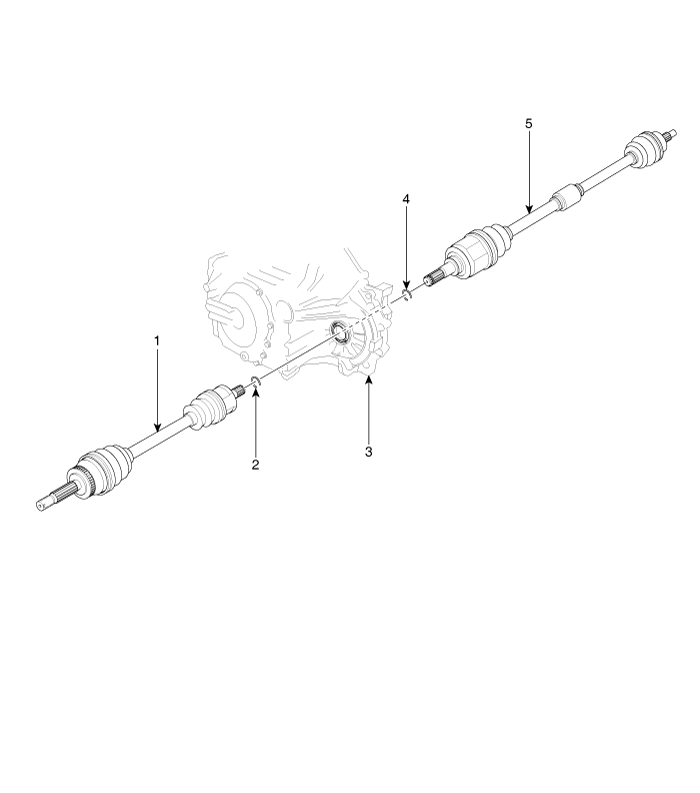

Component (1)

1. Driveshaft (LH)
2. Circlip
3. Transaxle
4. Circlip
5. Driveshaft (RH)

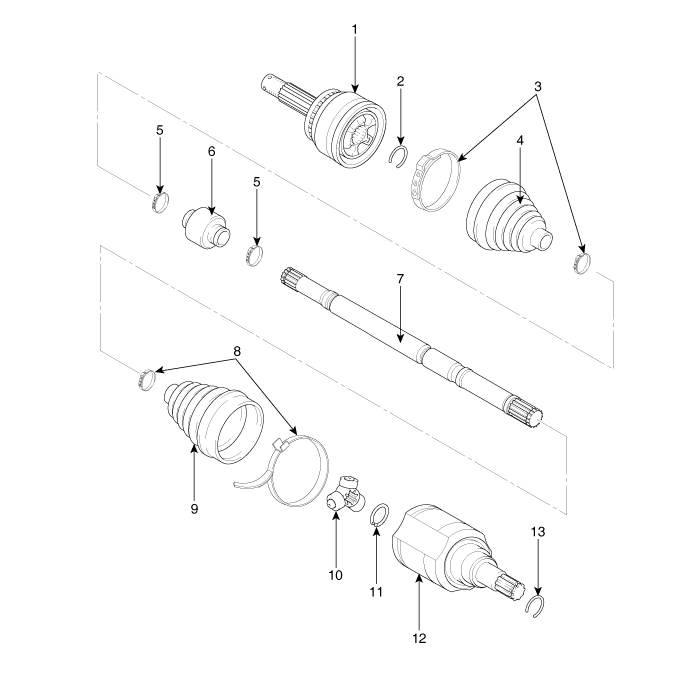

Component (2)

1. BJ assembly
2. Clip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot
10. Spider assembly
11. Circlip
12. TJ case
13. Clip
