Hyundai Elantra: Filter replacement - Climate control air filter - Maintenance - Hyundai Elantra HD 2006Ц2010 Owners ManualHyundai Elantra: Filter replacement

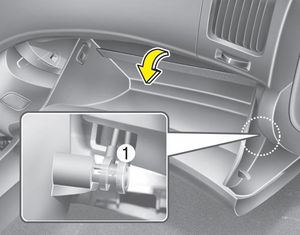

1. Open the glove box and remove the support rod.

1. Open the glove box and remove the support rod.

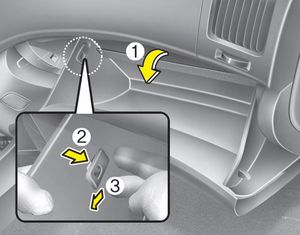

2. With the glove box open, remove the stoppers on both sides to allow the glove

2. With the glove box open, remove the stoppers on both sides to allow the glove box to hang freely on the hinges.

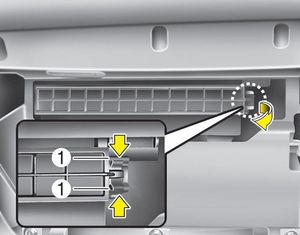

3. Remove the climate control air filter case pulling out the cover.

3. Remove the climate control air filter case pulling out the cover.

4. Replace the climate control air filter.

4. Replace the climate control air filter.

5. Reassemble in the reverse order of disassembly.

✽ NOTICE

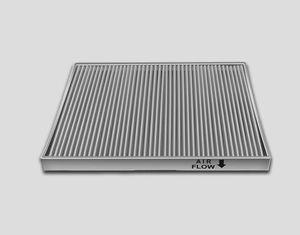

When replacing the climate control air filter install it according to the УAIR FLOW􀃈Ф identification marks. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.

    Filter inspection
    The climate control air filter should be replaced every 10,000 miles (15,000 km). If the vehicle is operated in the severely air-polluted cities or on dusty rough roads for a long period, it shoul ...
