Hyundai Elantra: Exhaust Manifold. Components and Components Location - Intake And Exhaust System - Engine Mechanical System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Exhaust Manifold. Components and Components Location

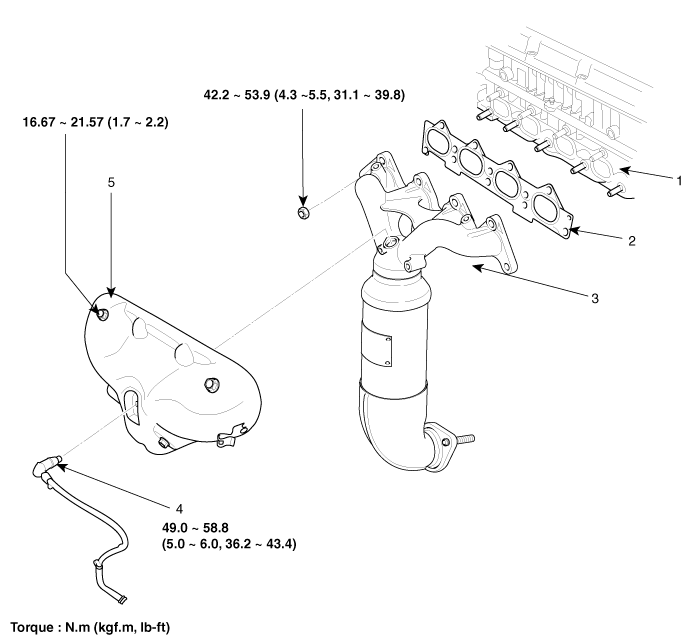

Components

1. Cylinder head
2. Gasket
3. Exhaust manifold
4. Front oxygen sensor
5. Heat protector
