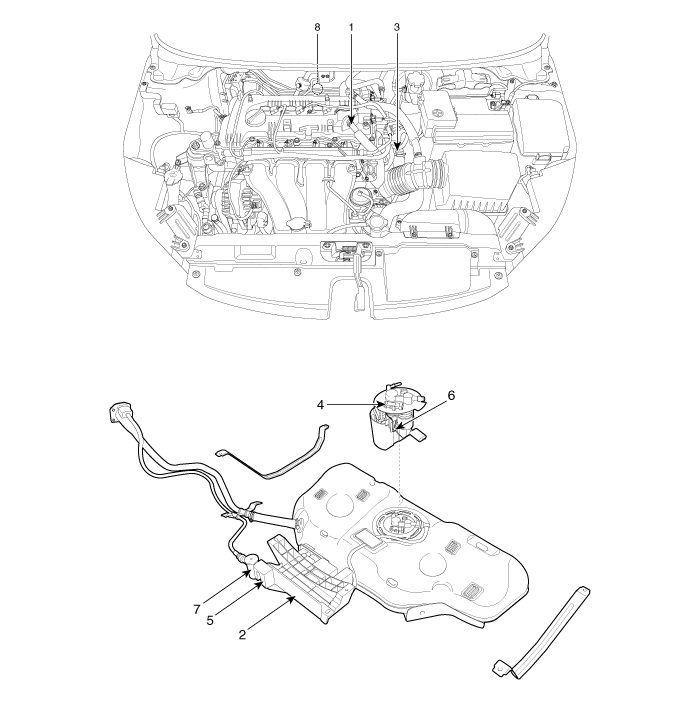

Components Location

1. PCV valve
2. Canister
3. Purge control solenoid valve (PCSV)
4. Fuel tank pressure sensor (FTPS)
5. Canister close valve (CCV)
6. Fuel level sensor (FLS)
7. Fuel tank air filter
8. Catalytic converter
9. Auxiliary canister

1. PCV Valve
2. Canister

3. Purge Control Solenoid Valve (PCSV)
4. Fuel Tank Pressure Sensor (FTPS)

5. Canister Close Valve (CCV)
7. Fuel Tank Air Filter
6. Fuel Level Sensor (FLS)

8. Catalytic Converter [SULEV] (WCC)
8. Catalytic Converter [SULEV] (UCC)

8. Catalytic converter [ULEV] (CCC)
