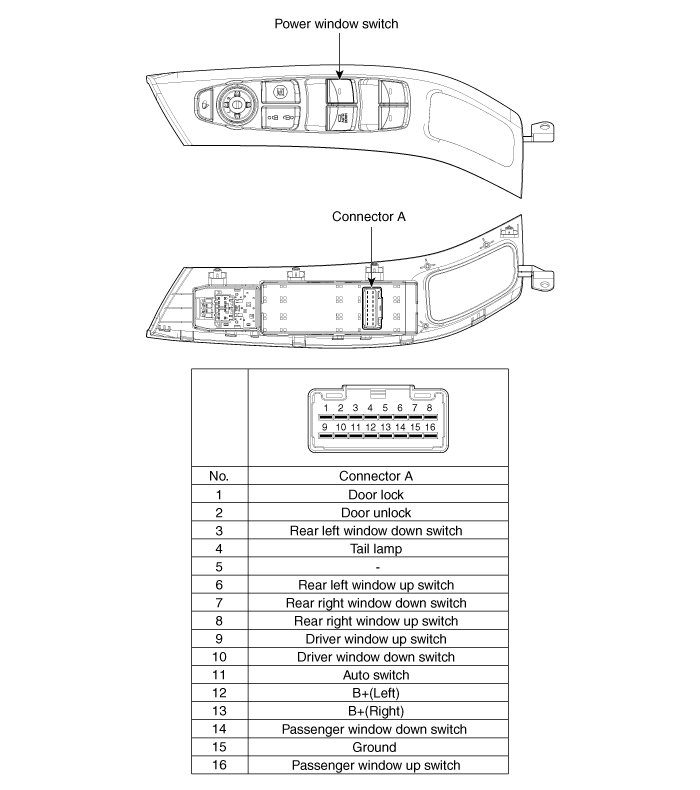

Hyundai Elantra MD/UD: Driver Power Window Switch

Fifth generation (MD/UD; 2011–2016) / Hyundai Elantra MD 2010-2015 Service manual / Body Electrical System / Power Windows / Power Window Switch. Schematic Diagrams / Driver Power Window Switch

Passenger power window switch

Circuit Diagram

...

Passenger power window switch

...
