Hyundai Elantra: DC/DC Converter. Schematic Diagrams - ISG (Idle Stop & Go) System - Fuel System - Hyundai Elantra MD 2010-2018 Service manualHyundai Elantra: DC/DC Converter. Schematic Diagrams

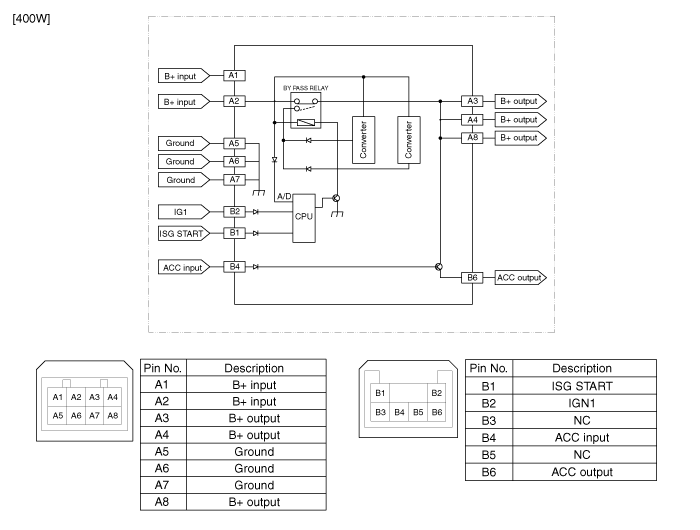

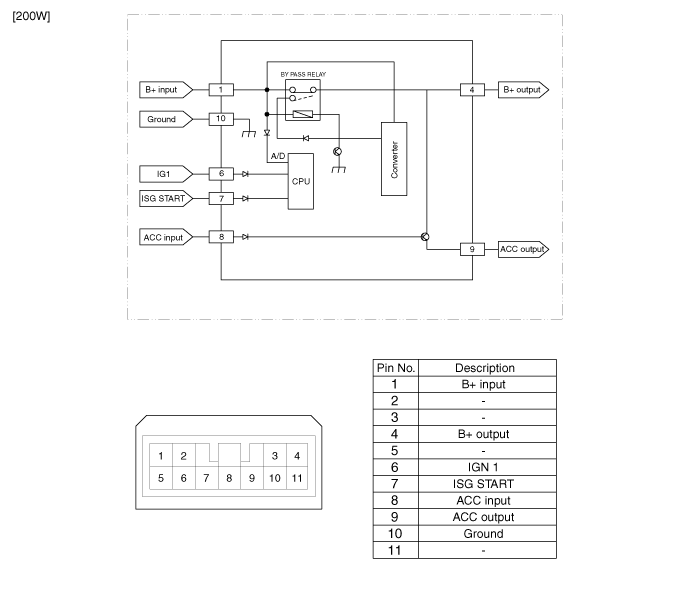

Circuit Diagram

In the ISG mode, if the power of an audio system turnsOFF by drawdown while Auto Starting or Idle Startingfunction operates, replace the DC/DC converter.
