Hyundai Elantra: Cruise Control Actuator. Schematic Diagrams - Cruise Control System - Engine Electrical System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Cruise Control Actuator. Schematic Diagrams

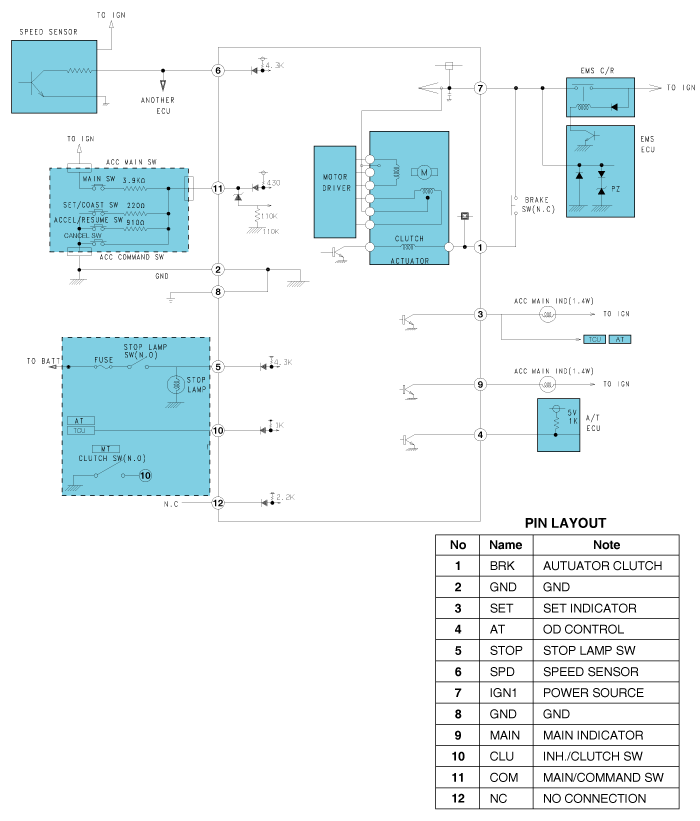

Circuit Diagram
