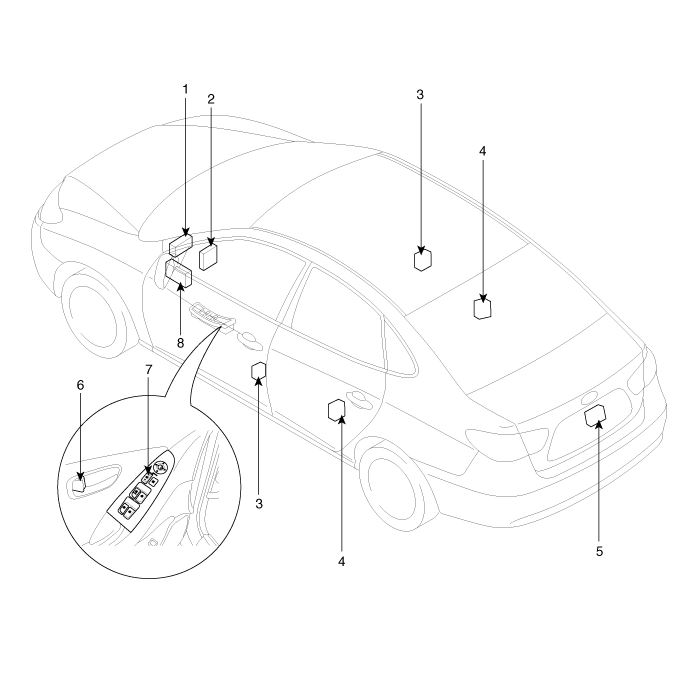

Component Location

1. ICM relay box (Door lock/unlock relay)
2. Body control module (BCM)
3. Front door lock actuator & switch
4. Rear door lock actuator & switch
5. Trunk lid actuator & switch
6. Door lock knob
7. Door lock switch
8. Passinger compartment junction box (Trunk lid relay)


    Power Door Lock Actuators. Repair procedures
    Inspection Front Door Lock Actuator 1. Remove the front door trim. (Refer to the Body group - Front door) 2. Remove the front door mod ...
