Component Location

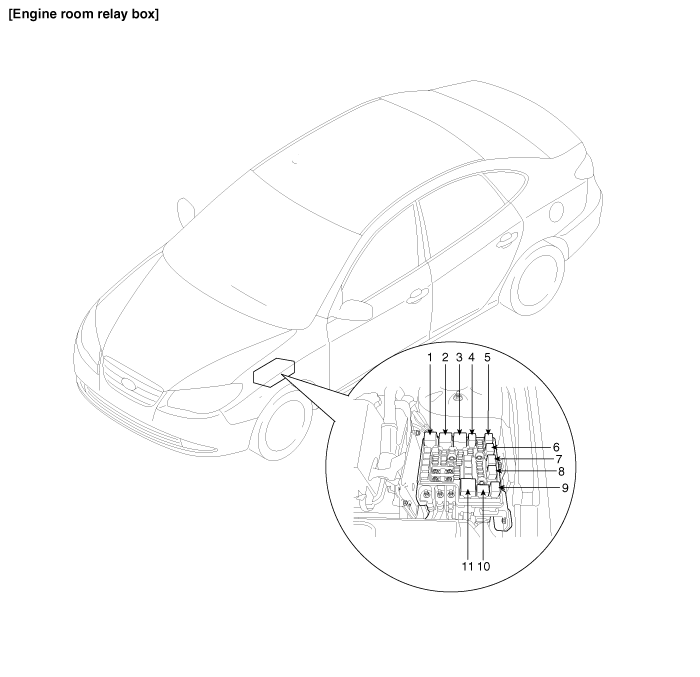

1. Condenser pan 2 relay
2. Condenser pan 1 relay
3. Start relay
4. A/C relay
5. Fuel pump relay
6. Head lamp relay (Low-left side)
7. Horn relay
8. Head lamp relay (High)
9. Front fog lamp relay
10. Wiper relay
11. Main relay

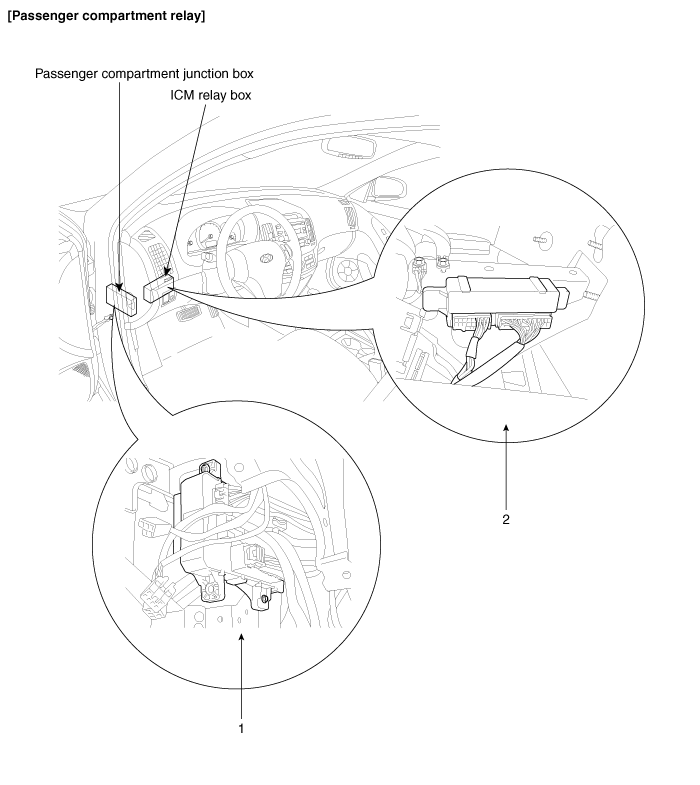

1. Tail lamp relay, Power window relay, Rear heater relay, Trunk lid relay (Built-in-Junction box)
2. Door unlock relay, Door lock relay, Front decier relay, Buglar alarm relay, Buglar alarm horn relay, Hazard relay
(Built-in-ICM relay Box)
