Hyundai Elantra: Components and Components Location - ABS(Anti-Lock Brake System) - Brake System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Components and Components Location

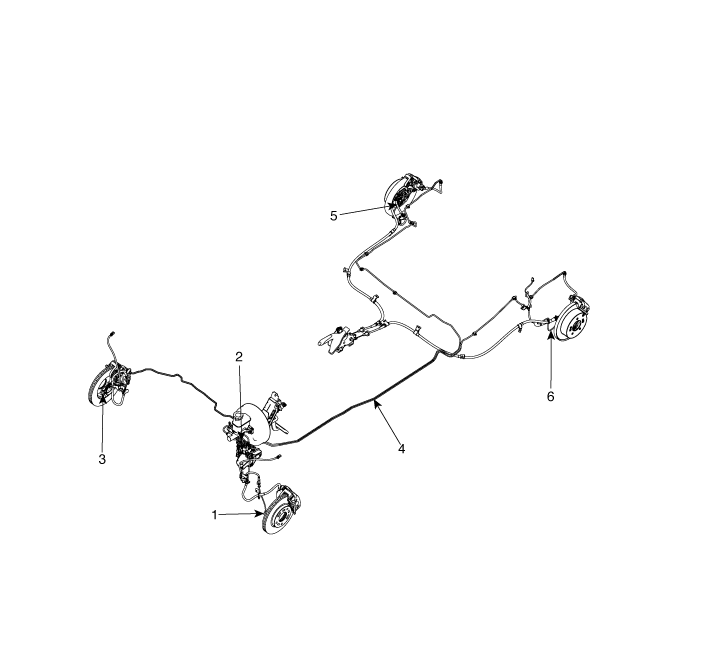

Components

1. Front left wheel speed sensor
2. ABS control module(HECU)
3. Front right wheel speed sensor
4. Hydrauric line
5. Rear right wheel speed sensor
6. Rear left wheel speed sensor
