Components

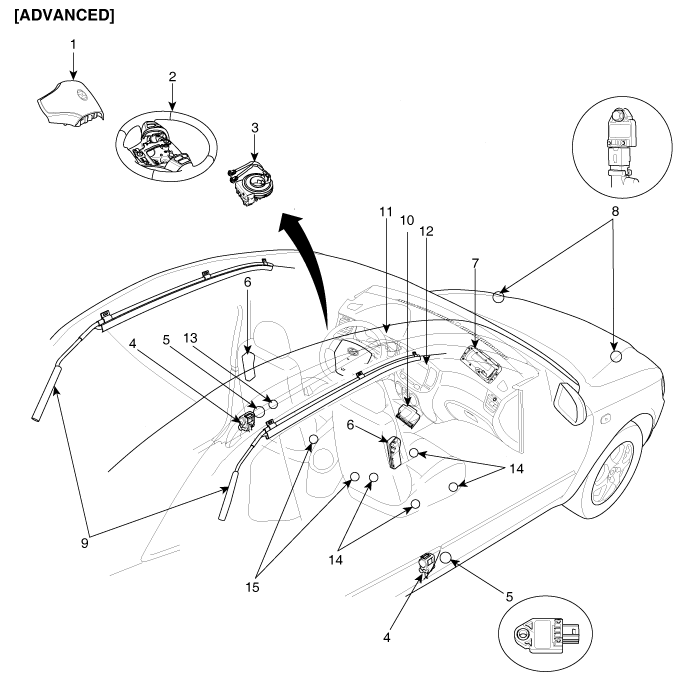

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Seat Belt Pretensioner (BPT)
5. Side Impact Sensor (SIS)
6. Side Airbag (SAB)
7. Passenger Airbag (PAB)
8. Front Impact Sensor (FIS)
9. Curtain Airbag (CAB)
10. Supplemental Restraint System Control Module
(SRSCM)
11. Airbag Warning Lamp
12. Telltale Lamp
13. Seat Track Position Sensor (STPS)
14. Occupant Classification Sensor (OCS)
15. Seat Belt Buckle Switch

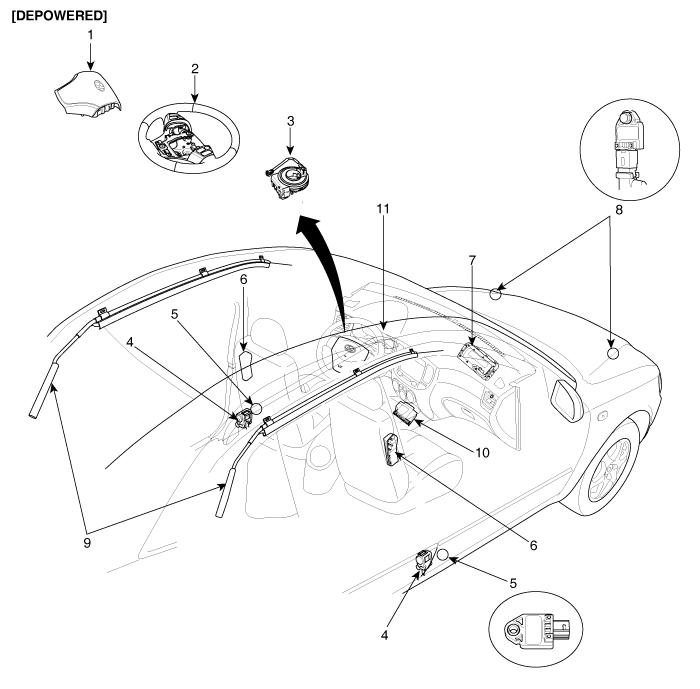

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Seat Belt Pretensioner (BPT)
5. Side Impact Sensor (SIS)
6. Side Airbag (SAB)
7. Passenger Airbag (PAB)
8. Front Impact Sensor (FIS)
9. Curtain Airbag (CAB)
10. Supplemental Restraint System Control Module
(SRSCM)
11. Airbag Warning Lamp

Components Location

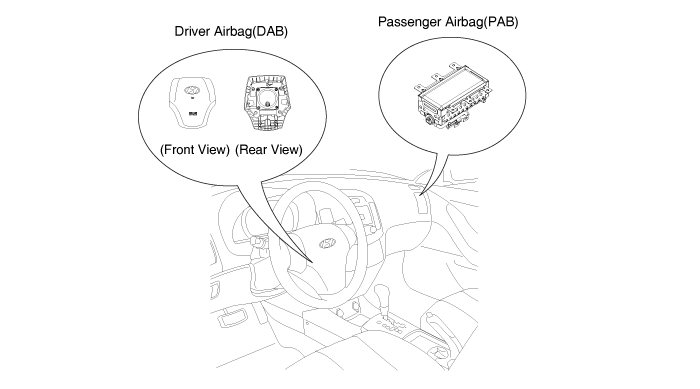

Driver Airbag (DAB) / Passenger Airbag (PAB)

Side Airbag (SAB)

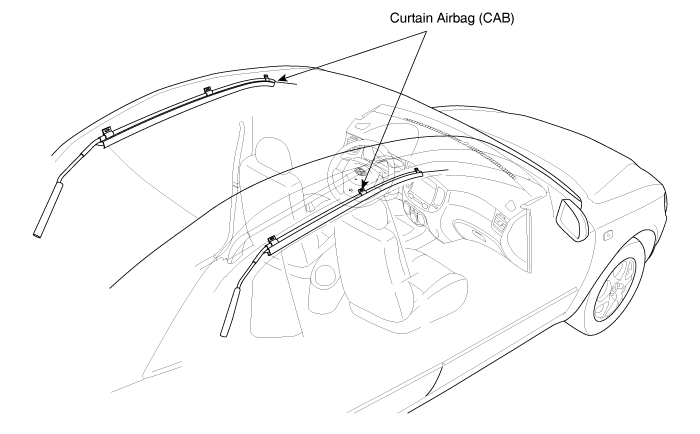

Curtain Airbag (CAB)

Front Impact Sensor (FIS)

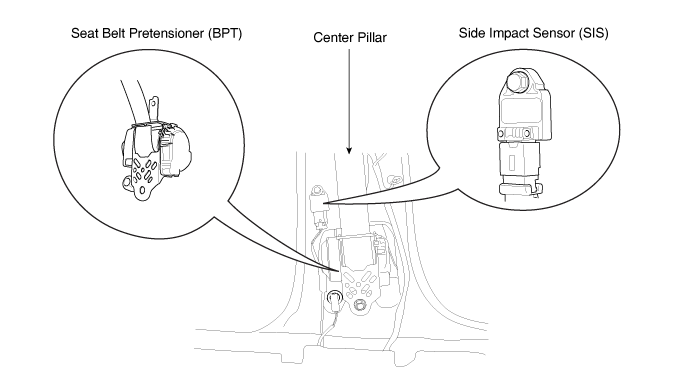

Seat Belt Pretensioner (BPT) / Side Impact Sensor (SIS)

Supplemental Restraint System Control Module (SRSCM)
