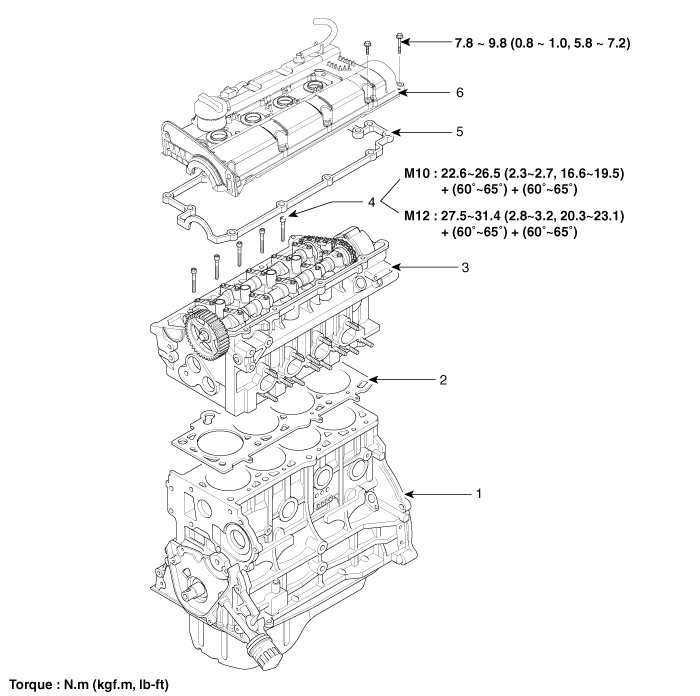

Components

1. Cylinder block
2. Cylinder head gasket
3. Cylinder head
4. Cylinder head bolt
5. Gasket
6. Cylinder head cover

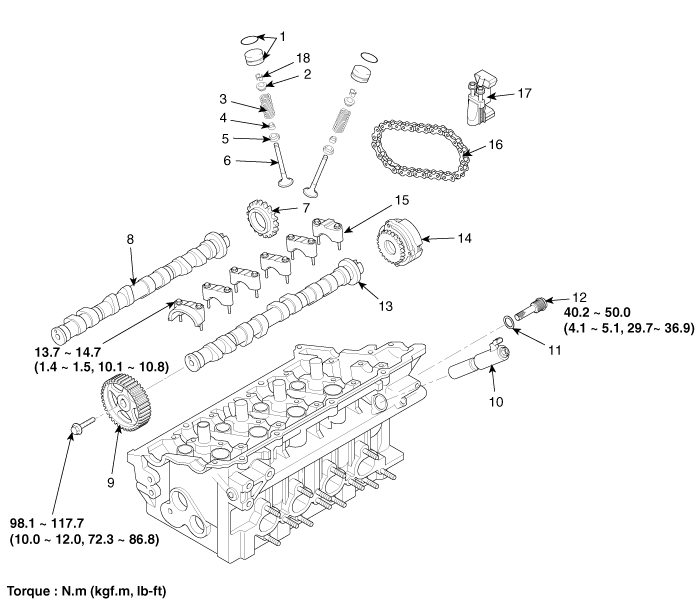

1. Mechanical lash adjuster(MLA)
2. Retainer
3. Valve spring
4. Stem seal
5. Spring seat
6. Valve
7. Chain sprocket
8. Intake camshaft
9. Camshaft sprocket
10. Oil control valve(OCV)
11. Washer
12. OCV filter
13. Exhaust camshaft
14. CVVT assembly
15. Camshaft bearing cap
16. Timing chain
17. Auto Tensioner
18. Retainer lock


    Repair procedures
    Removal Х Use fender covers to avoid damaging painted surfaces. Х ...
