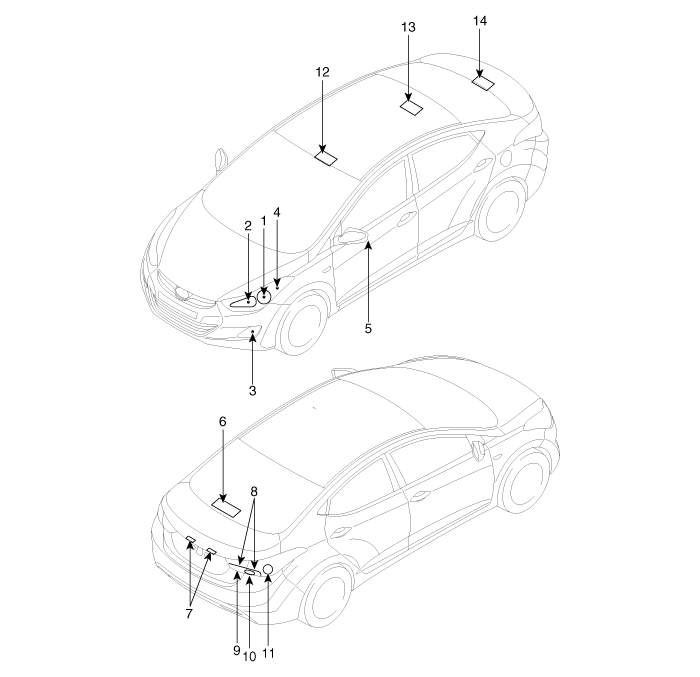

Component Location

1. Head lamp(Low)
2. Head lamp(High)
3. Fog lamp
4. Turn signal lamp / position lamp
5. Turn signal lamp(Door mirror)
6. High mounted stop lamp
7. License lamp
 8. Tail lamp
9. Stop lamp
10. Turn signal lamp
11. Tail/stop lamp
12. Overhead lamp
13. Room lamp
14. Luggage lamp
