Hyundai Elantra: Components
and Components Location - Automatic Transaxle Control System - Automatic Transaxle System - Hyundai Elantra MD 2010-2018 Service manualHyundai Elantra: Components and Components Location


Components Location

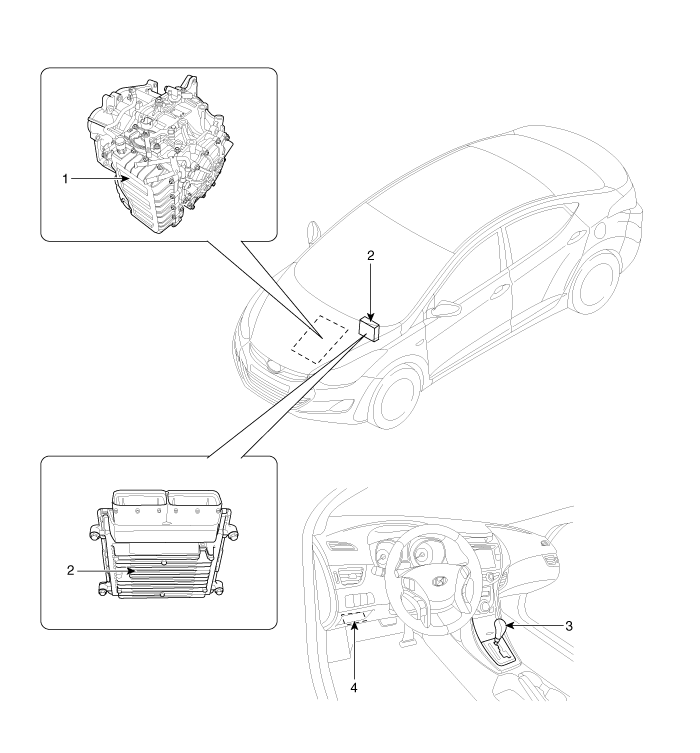

[Vehicle Components]

1. Automatic Transaxle (AT)
2. Transaxle Control Module (TCM)
3. Shift lever
4. Data Link Connector (DLC)

[Transaxle Components]

1. Input speed sensor
2. Output speed sensor
3. Solenoid valve connect
4. Oil temperature sensor
5. Valve body assembly
6. Solenoid valve
7. Inhibitor switch


    Schematic Diagrams
    Circuit Diagram ...

    Transaxle Control Module (TCM). Description and Operation
    Description Transaxle Control Module (TCM) is the automatic transaxle's brain. The module receives and processes signals from various sensors and implements a wide range of transaxle con ...
