Hyundai Elantra: Components and Components Location - Clutch & Brake - Automatic Transaxle System - Hyundai Elantra MD 2010-2018 Service manualHyundai Elantra: Components and Components Location

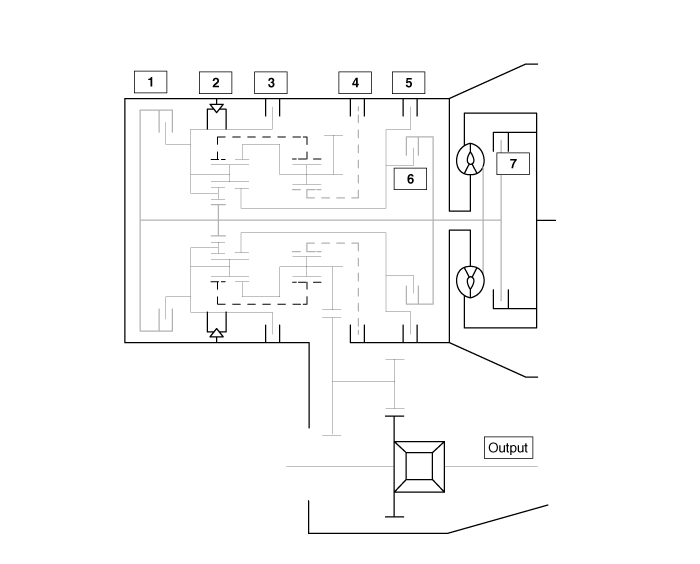

Components Location

1. Overdrive Clutch (OD/C)
2. One-Way Clutch (OWC)
3. Low&Reverse Brake (LR/B)
4. Underdrive Brake (UD/B)
5. 26 Brake (26/B)
6. 35R Clutch (35R/C)
7. Damper Clutch (D/C)


    Description and Operation
    Description The 6-speed automatic transaxle consists of an Overdrive Clutch (OD/C), a One-Way Clutch (OWC), a Lower & Reverse Brake (LR/B), an Underdrive Brake (UD/B), a 26 brake (26/B), ...

    Flow Diagram
    Power Flow Chart P,N UD/B LR/B 26/B 35R/C OD/C OWC ● ...
