Hyundai Elantra: Components and Components Location - Fuel Delivery System - Fuel System - Hyundai Elantra MD 2010-2018 Service manualHyundai Elantra: Components and Components Location

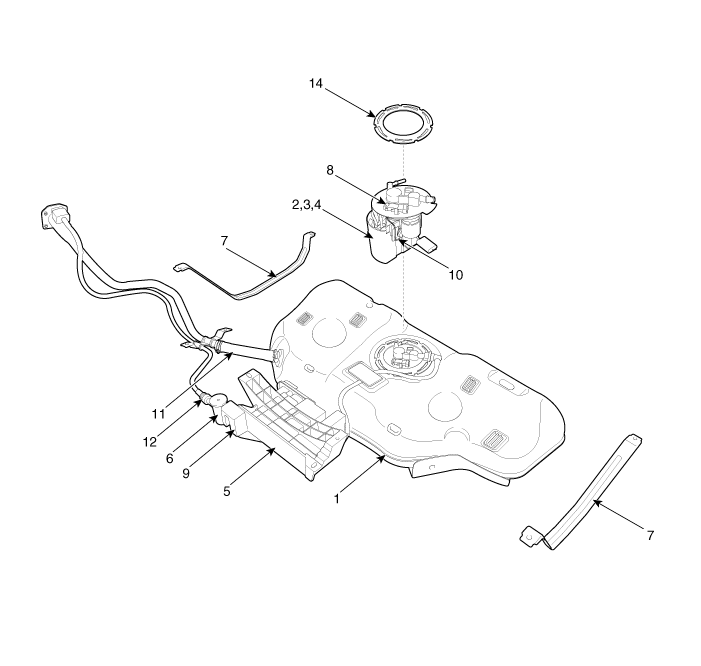

Components Location

1. Fuel tank
2. Fuel pump
3. Fuel filter
4. Fuel pressure regulator
5. Canister
6. Fuel tank air filter
7. Fuel tank band
8. Fuel tank pressure sensor (FTPS)
9. Canister close valve (CCV)
10. Fuel level sensor (FLS)
11. Fuel filler hose
12. Ventilation tube
13. Vapor tube
14. Fuel pump locking ring
