Hyundai Elantra: Clutch Release Cylinder. Components and Components Location - Clutch System - Clutch System - Hyundai Elantra HD 2006Ц2010 Service ManualHyundai Elantra: Clutch Release Cylinder. Components and Components Location

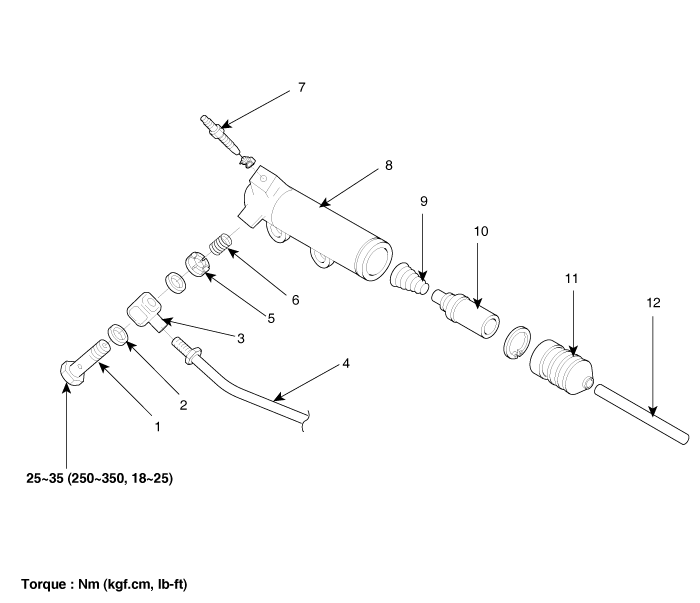

Components

1. Union bolt
2. Gasket
3. Tube joint
4. Clutch tube
5. Valve plate
6. Valve spring
7. Bleeder screw
8. Release cylinder
9. Return spring
10. Piston
11. Boot
12. Push rod


    Clutch Pedal. Repair procedures
    Removal 1. Drain the brake fluid through the bleeding plug (A). 2. Remove the flexible hose (A) connected to brake reserve tank from ...

    Clutch Release Cylinder. Repair procedures
    Removal 1. Drain the brake fluid through the bleed plug(A). 2. Disconnect the clutch tube(A). 3. ...
